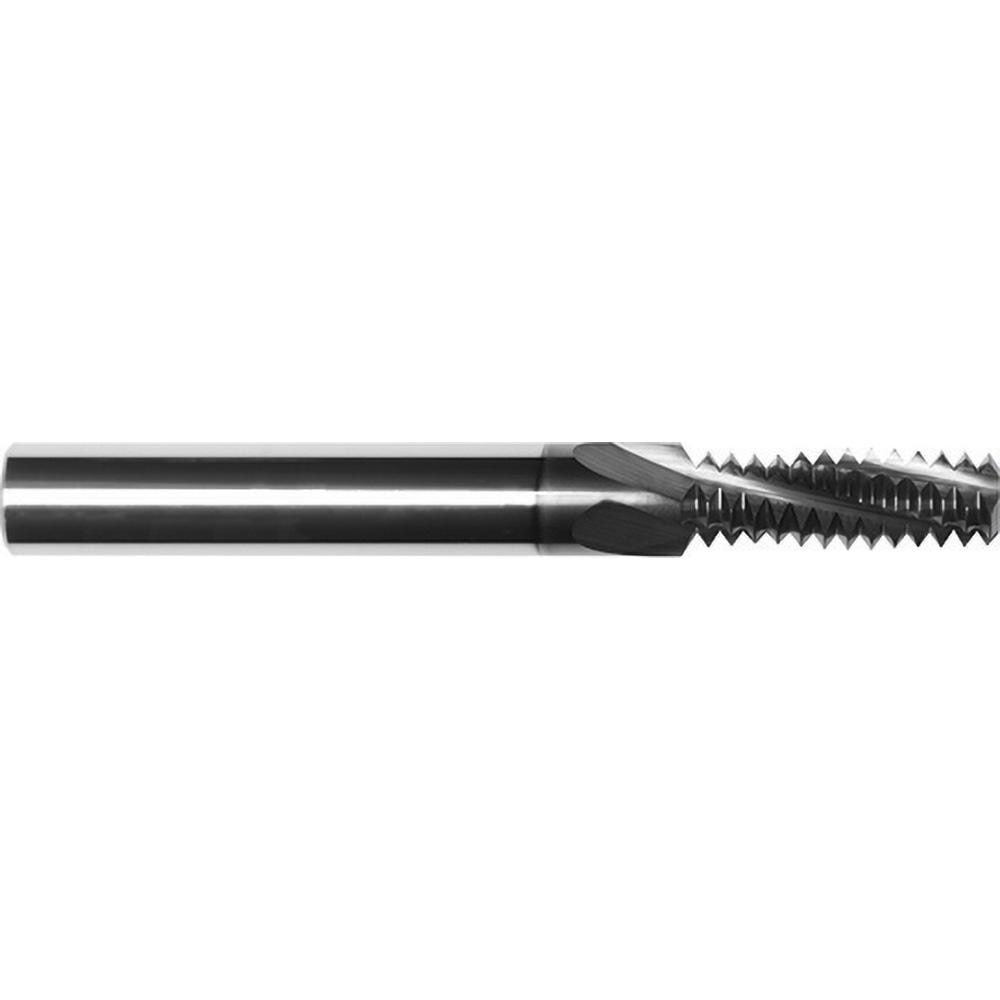

Helical Flute Thread Mill: 1/4-28, Internal & External, 3 Flute, 0.1875" Shank Dia, Solid Carbide
Item #: 70592316
Brand: Internal Tool
Model #: 89-1230
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-28 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1800 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Minimum Nominal Diameter (Inch) | 0.1800 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.5000 |
| Teeth Per Inch | 28 |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-28 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1800 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Minimum Nominal Diameter (Inch) | 0.1800 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.5000 |
| Teeth Per Inch | 28 |
| UNSPSC Code | 23242117 |
| MSC Part # | 70592316 |
| Mfr Part # | 89-1230 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
