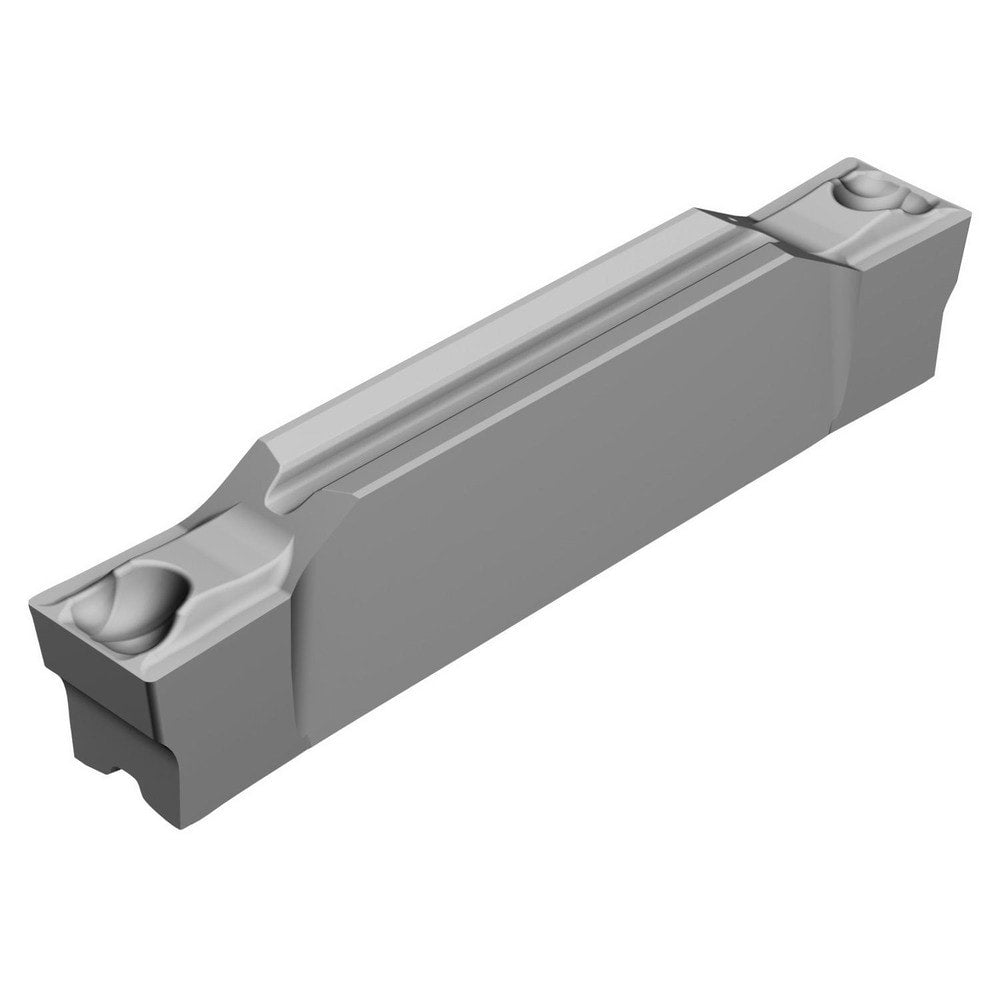

Grooving Insert: C2I E2 GF H13A, Carbide
Item #: 01026269
Brand: Sandvik Coromant
Model #: 8194254
Product Specifications
| Insert Style | C2I |
| Insert Size Code | E |
| Cutting Width (Decimal Inch) | 0.7618 |
| Cutting Width (mm) | 2.260 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0508 |
| Maximum Depth of Cut (mm) | 1.29 |
| Insert Material | Carbide |
| Manufacturer Grade | H13A |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.1 |
| Number Of Cutting Edges | 2 |
| Rake | Neutral |
| Face Grooving | Yes |
| Insert Holding Method | Clamp |
| Insert Size | E2 |
| Cutting Height (mm) | 19.35 |
| Cutting Height (Decimal Inch) | 0.7618 |
| Lead Angle | 0.000 |
| Multi-use Tool | No |
| Series | CoroCut 2 |
| Coating Process | Uncoated |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | C2I-E2N-0215-0001-GFH13A |
| Iso Code | C2I-E2N-0215-0001-GFH13A |
| Manufacturers Catalog Number | C2I-E2N-0215-0001-GFH13A |
| UNSPSC Code | 23242105 |
| Chip Breaker | GF |
| Coating/Finish | Uncoated |
| For Use With | Parting & Grooving Tool Holders |
