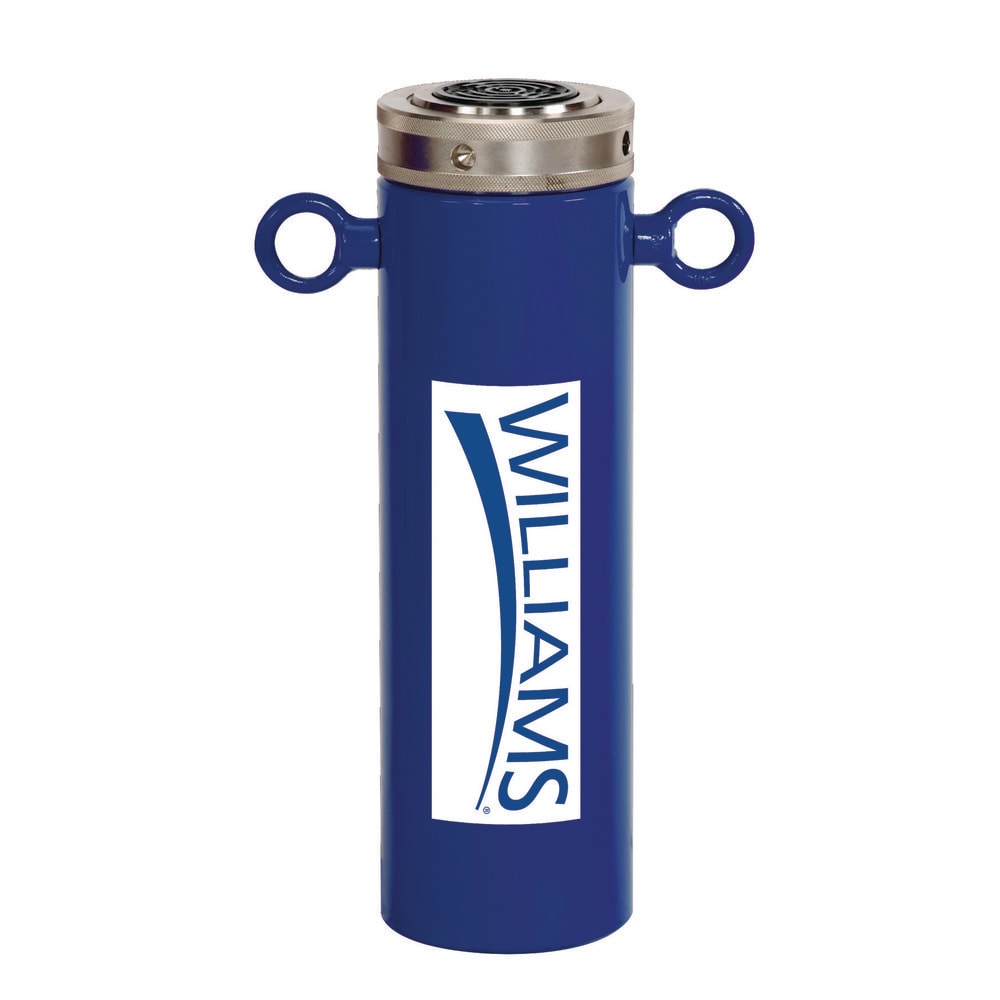

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 55 TON; Stroke Length: 5.91; Piston Stroke (Decimal Inch): 5.91; Oil Capacity: 43.27; Cylinder Effective Area: 10.99; Lowered Height: 8.4
Item #: 54380035
Brand: Williams
Model #: 6CN55T04
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 55 TON |
| Stroke Length | 5.91 |
| Piston Stroke (Decimal Inch) | 5.91 |
| Oil Capacity | 43.27 |
| Cylinder Effective Area | 10.99 |
| Lowered Height | 8.4 |
| Retracted Length | 8.4 |
| Extended Length | 12.4 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 4.9 |
| Rod Diameter | 3.7 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .49 |
| Saddle Diameter | 2.50 |
| Y Center Hole Diameter | 3.7 |
| Maximum Height (Inch) | 12.4 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 55 TON |
| Stroke Length | 5.91 |
| Piston Stroke (Decimal Inch) | 5.91 |
| Oil Capacity | 43.27 |
| Cylinder Effective Area | 10.99 |
| Lowered Height | 8.4 |
| Retracted Length | 8.4 |
| Extended Length | 12.4 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 4.9 |
| Rod Diameter | 3.7 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .49 |
| Saddle Diameter | 2.50 |
| Y Center Hole Diameter | 3.7 |
| Maximum Height (Inch) | 12.4 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54380035 |
| Mfr Part # | 6CN55T04 |
| Country of Origin Country of Origin is subject to change | Taiwan |
