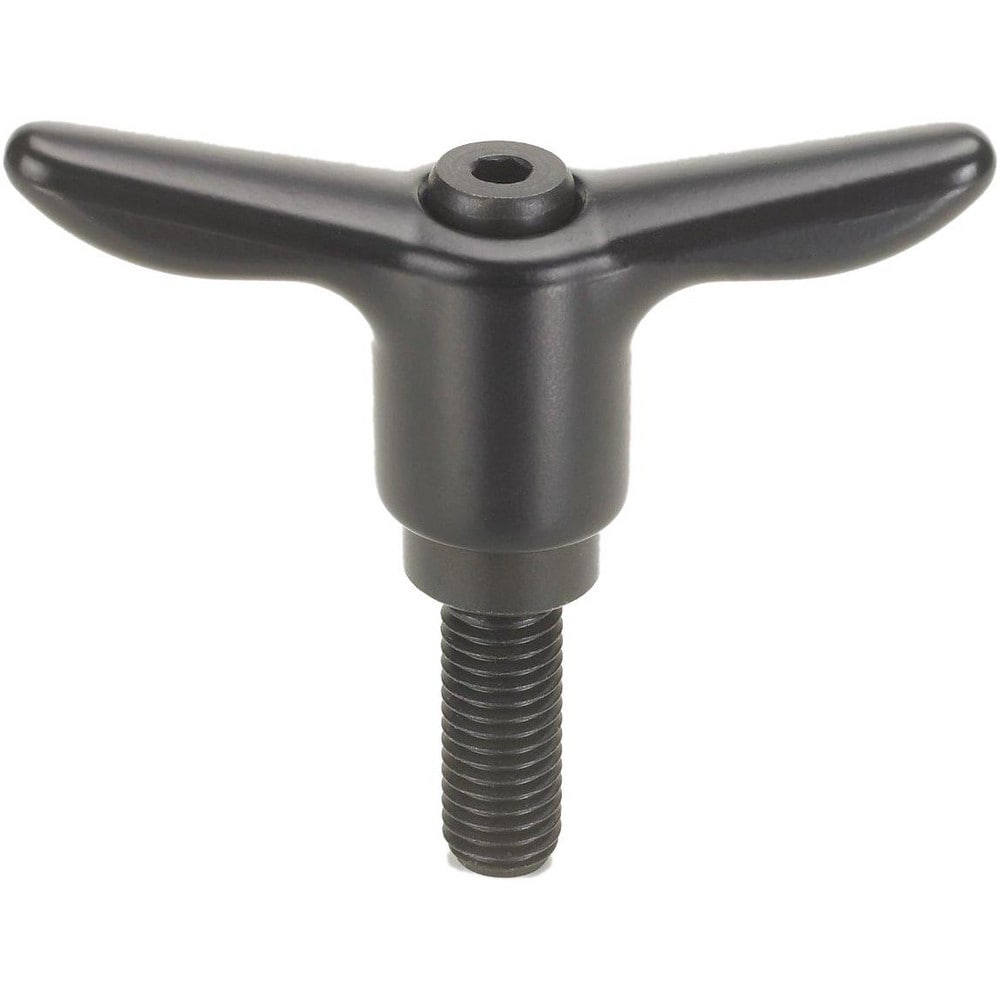

Adjustable Clamping Handle: T-Handle, 1/2-13 Thread, Die Cast Zinc Handle, 0.9100" Hub Dia, Black
Item #: 60302221
Brand: Morton Machine Works
Model #: TH-322
Product Specifications
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 4.2500 |
| Overall Length (Decimal Inch) | 4.25 |
| Handle Material | Die Cast Zinc |
| Overall Height (Decimal Inch) | 2.2000 |
| Thread Size | 1/2-13 |
| Hub Diameter (Decimal Inch) | 0.9100 |
| Stud Length (Decimal Inch) | 2.4800 |
| Stud Material | Steel |
| Color | Black |
| Standards | REACH; RoHS Compliant |
| Body Diameter (Decimal Inch) | 1.1600 |
| Base Diameter (Decimal Inch) | 0.9100 |
| Body Height (Decimal Inch) | 1.8500 |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 2.1250 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 2.2000 |
| Threaded Length | 2.4800 |
| Actual Handle Length | 4.2500 |
| Base Radius (Decimal Inch) | 0.4550 |
| Base Width (Inch) | 0.9100 |
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 4.2500 |
| Overall Length (Decimal Inch) | 4.25 |
| Handle Material | Die Cast Zinc |
| Overall Height (Decimal Inch) | 2.2000 |
| Thread Size | 1/2-13 |
| Hub Diameter (Decimal Inch) | 0.9100 |
| Stud Length (Decimal Inch) | 2.4800 |
| Stud Material | Steel |
| Color | Black |
| Standards | REACH; RoHS Compliant |
| Body Diameter (Decimal Inch) | 1.1600 |
| Base Diameter (Decimal Inch) | 0.9100 |
| Body Height (Decimal Inch) | 1.8500 |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 2.1250 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 2.2000 |
| Threaded Length | 2.4800 |
| Actual Handle Length | 4.2500 |
| Base Radius (Decimal Inch) | 0.4550 |
| Base Width (Inch) | 0.9100 |
| MSC Part # | 60302221 |
| Mfr Part # | TH-322 |
| Country of Origin Country of Origin is subject to change | Taiwan |
