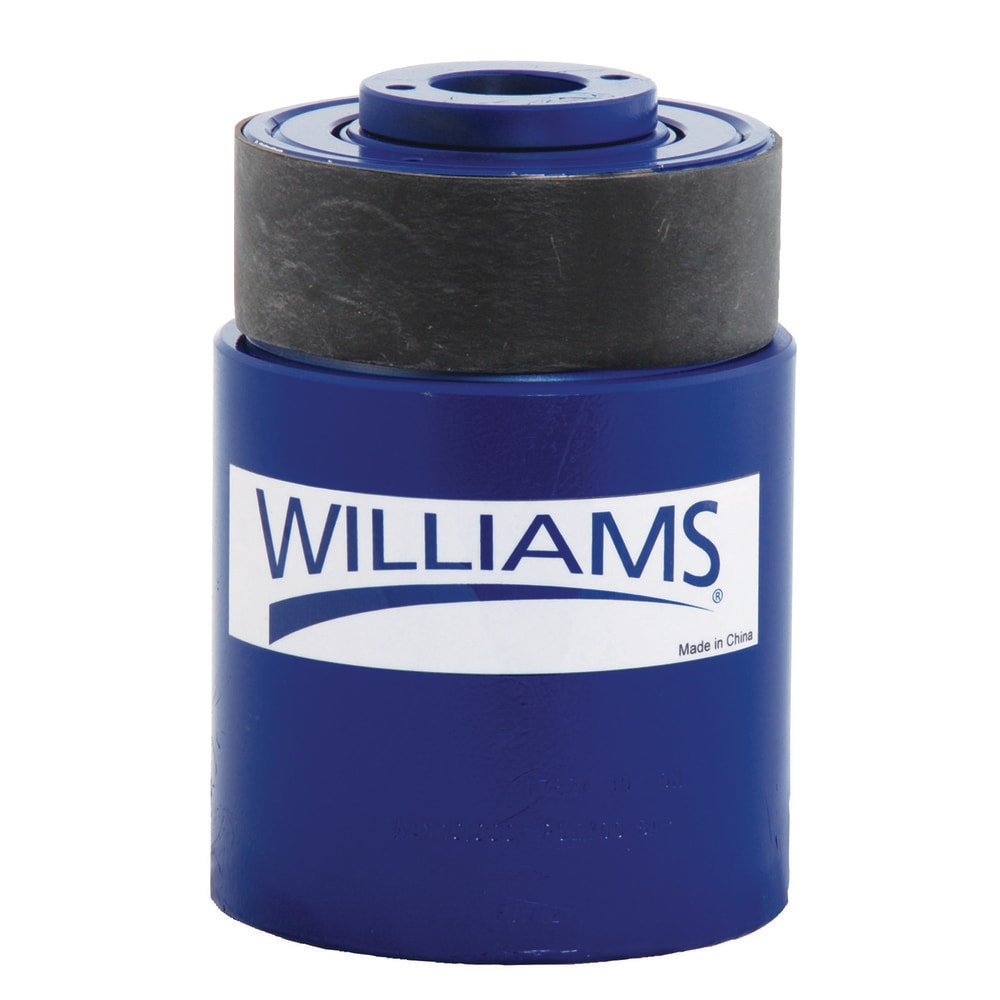

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 20 TON; Stroke Length: 6.06; Piston Stroke (Decimal Inch): 6.0600; Cylinder Effective Area: 4.90; Lowered Height: 12.05
Item #: 54381116
Brand: Williams
Model #: 6CH20T06
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 20 TON |
| Stroke Length | 6.06 |
| Piston Stroke (Decimal Inch) | 6.0600 |
| Cylinder Effective Area | 4.90 |
| Lowered Height | 12.05 |
| Retracted Length | 12.05 |
| Extended Length | 18.11 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.92 |
| Rod Diameter | 1.63 mm |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .23 |
| Saddle Diameter | 2.00 |
| Plunger Internal Thread Size | 1-5/16-16UN |
| Plunger Internal Thread Length | .75 |
| Y Center Hole Diameter | 1.06 |
| Maximum Height (Inch) | 18.11 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 20 TON |
| Stroke Length | 6.06 |
| Piston Stroke (Decimal Inch) | 6.0600 |
| Cylinder Effective Area | 4.90 |
| Lowered Height | 12.05 |
| Retracted Length | 12.05 |
| Extended Length | 18.11 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.92 |
| Rod Diameter | 1.63 mm |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .23 |
| Saddle Diameter | 2.00 |
| Plunger Internal Thread Size | 1-5/16-16UN |
| Plunger Internal Thread Length | .75 |
| Y Center Hole Diameter | 1.06 |
| Maximum Height (Inch) | 18.11 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54381116 |
| Mfr Part # | 6CH20T06 |
| Country of Origin Country of Origin is subject to change | Taiwan |
