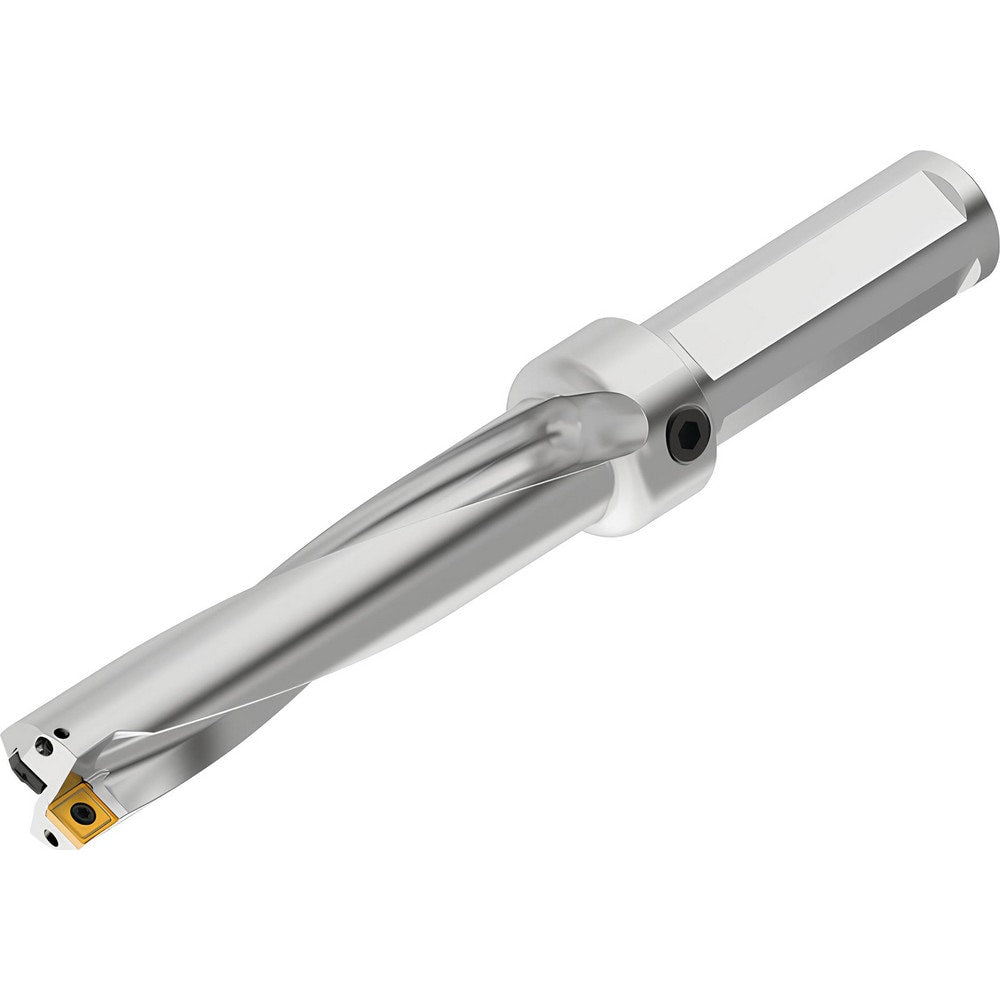

Indexable Insert Drill: DFPR1281R5SSF150, 33.53 mm Max Dia, 162.69 mm Max Depth, 5xD, 38.10 mm Shank Dia
Item #: 04931804
Brand: Kennametal
Model #: 7031338
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 33.53 |
| Maximum Drill Diameter (Decimal Inch) | 1.3200 |
| Maximum Drill Depth (Decimal Inch) | 6.4050 |
| Maximum Drill Depth (mm) | 162.69 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 110406; 120405 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 11.3360 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 6.4050 |
| Flute Length (mm) | 167.69 |
| Body Length | 287.94 |
| Body Length (Decimal Inch) | 7.5860 |
| Shank Length (Decimal Inch) | 3.7500 |
| Shank Length (mm) | 95.25 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4690x0.1420; 0.4450x0.1420 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR120405__I; DFPR110406__O |
| Collar Diameter (Decimal Inch) | 1.2437 |
| Collar Diameter (mm) | 31.59 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4-0.7x8.4T15 |
| Coolant Through | Yes |
