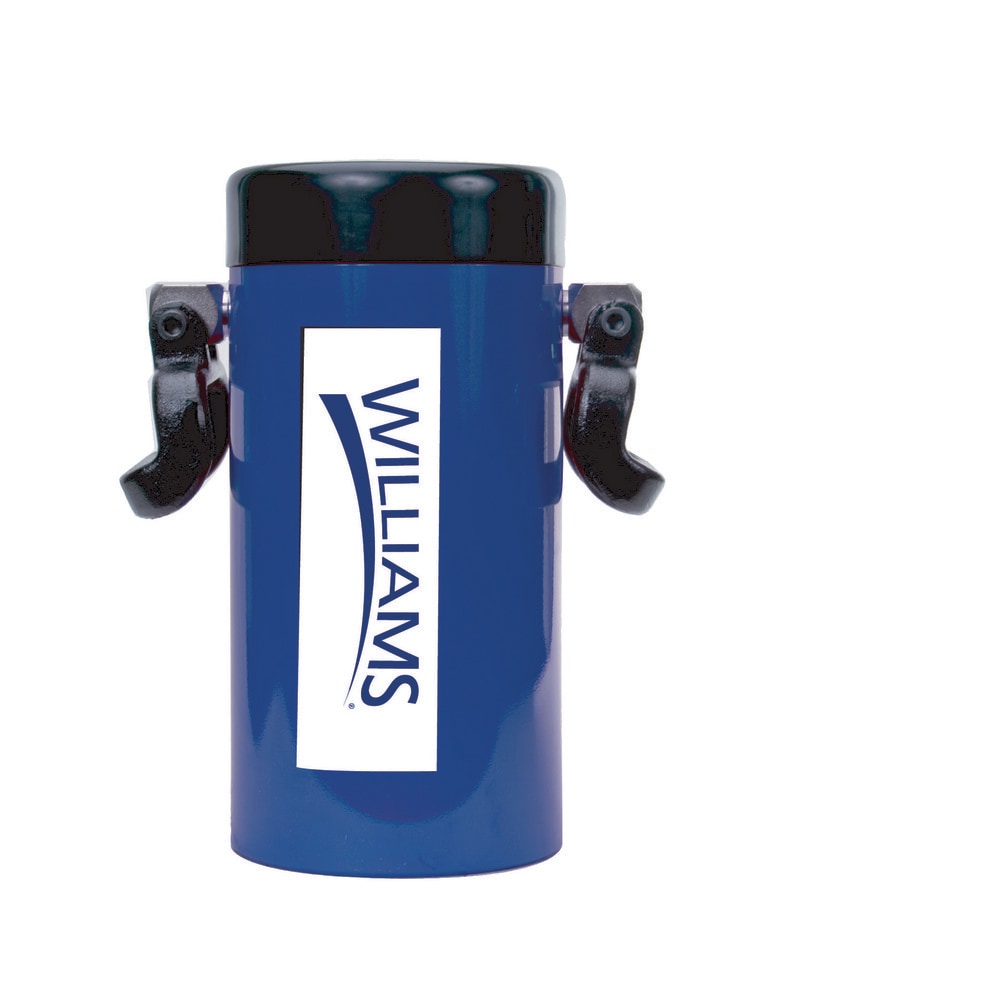

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 100 TON; Stroke Length: 10.24; Piston Stroke (Decimal Inch): 10.24; Oil Capacity: 218.64; Cylinder Effective Area: 28.57; Lowered Height: 17.68
Item #: 54381231
Brand: Williams
Model #: 6C100T10
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 10.24 |
| Piston Stroke (Decimal Inch) | 10.24 |
| Oil Capacity | 218.64 |
| Cylinder Effective Area | 28.57 |
| Lowered Height | 17.68 |
| Retracted Length | 17.68 |
| Extended Length | 27.82 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 6.97 |
| Rod Diameter | 5.12 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .76 |
| Saddle Diameter | 2.76 |
| Y Center Hole Diameter | 5.12 |
| Maximum Height (Inch) | 27.82 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 10.24 |
| Piston Stroke (Decimal Inch) | 10.24 |
| Oil Capacity | 218.64 |
| Cylinder Effective Area | 28.57 |
| Lowered Height | 17.68 |
| Retracted Length | 17.68 |
| Extended Length | 27.82 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 6.97 |
| Rod Diameter | 5.12 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .76 |
| Saddle Diameter | 2.76 |
| Y Center Hole Diameter | 5.12 |
| Maximum Height (Inch) | 27.82 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54381231 |
| Mfr Part # | 6C100T10 |
| Country of Origin Country of Origin is subject to change | Taiwan |
