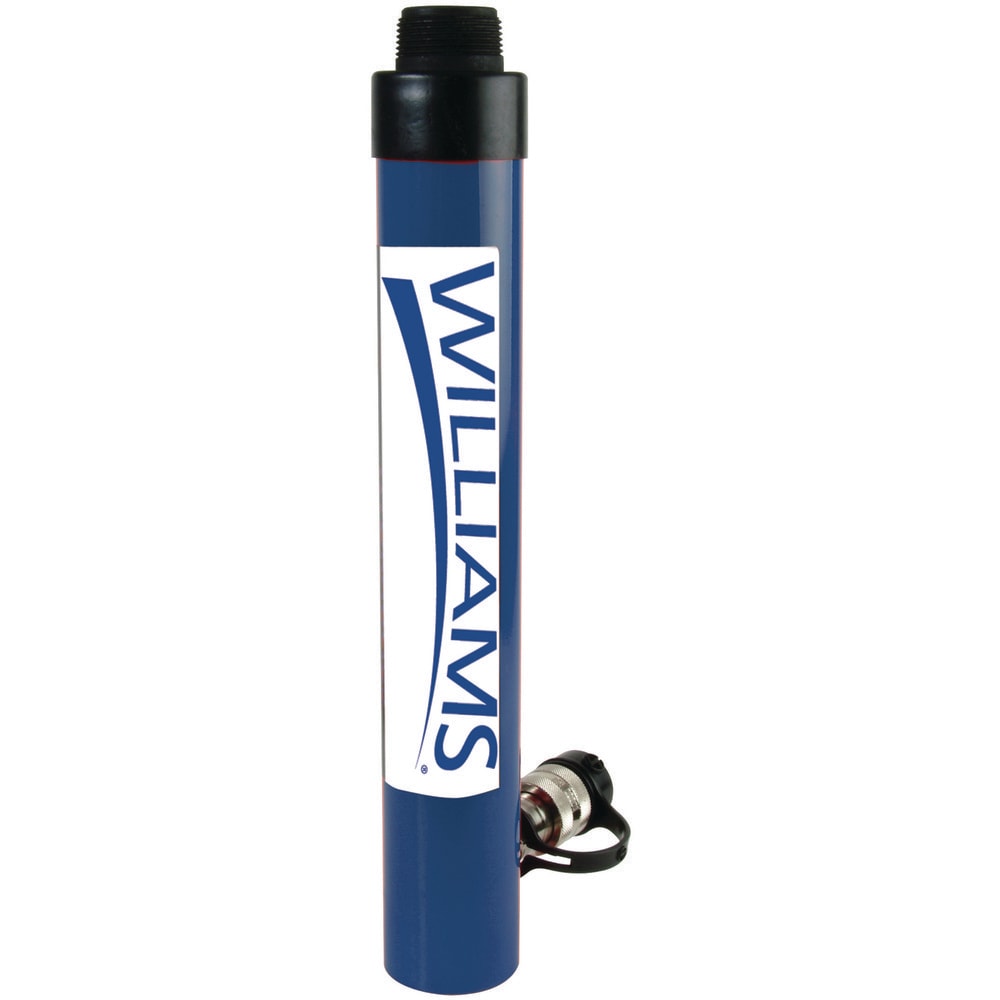

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 10 TON; Stroke Length: 9.96; Piston Stroke (Decimal Inch): 9.9600; Oil Capacity: 22.31; Cylinder Effective Area: 2.24; Lowered Height: 15.47
Item #: 54381215
Brand: Williams
Model #: 6CT10T10
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 10 TON |
| Stroke Length | 9.96 |
| Piston Stroke (Decimal Inch) | 9.9600 |
| Oil Capacity | 22.31 |
| Cylinder Effective Area | 2.24 |
| Lowered Height | 15.47 |
| Retracted Length | 15.47 |
| Extended Length | 25.43 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.26 |
| Rod Diameter | 1.49 mm |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .24 |
| Saddle Diameter | .94 |
| Plunger Internal Thread Size | 1-1/4 |
| Plunger Internal Thread Length | 1.13 |
| Y Center Hole Diameter | 1.49 |
| Maximum Height (Inch) | 25.43 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 10 TON |
| Stroke Length | 9.96 |
| Piston Stroke (Decimal Inch) | 9.9600 |
| Oil Capacity | 22.31 |
| Cylinder Effective Area | 2.24 |
| Lowered Height | 15.47 |
| Retracted Length | 15.47 |
| Extended Length | 25.43 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.26 |
| Rod Diameter | 1.49 mm |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .24 |
| Saddle Diameter | .94 |
| Plunger Internal Thread Size | 1-1/4 |
| Plunger Internal Thread Length | 1.13 |
| Y Center Hole Diameter | 1.49 |
| Maximum Height (Inch) | 25.43 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54381215 |
| Mfr Part # | 6CT10T10 |
| Country of Origin Country of Origin is subject to change | Taiwan |
