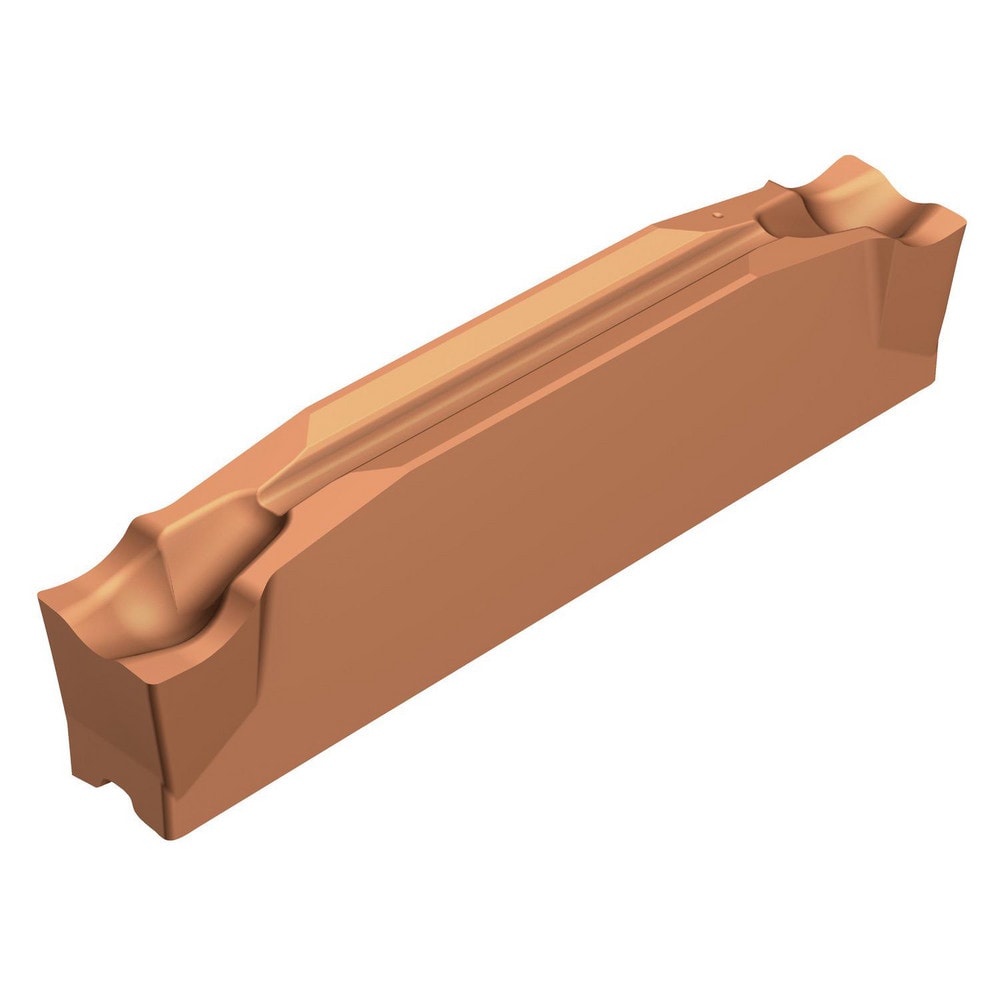

Cutoff Insert: C2IJ2L05000502CM 1225, Carbide, 5.00 mm Cutting Width, 0.1969" Cutting Width
Item #: 02199099
Brand: Sandvik Coromant
Model #: 8194222
Product Specifications
| Insert Style | C2I |
| Insert Size Code | J2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1225 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut 2 |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-J2L-0500-0502-CM1225 |
| Cutting Height (mm) | 24.18 |
| Cutting Height (Decimal Inch) | 0.9520 |
| Manufacturers Catalog Number | C2I-J2L-0500-0502-CM1225 |
| Insert Seat Size | J |
| Cutting Direction | Left Hand |
| Coating/Finish | TiAlN/TiAlSiN/TiSiN |
| UNSPSC Code | 23242105 |
