CNC Quick-Change Clamping Modules; Series: VERO-S; Actuation Type: Pneumatic; Number of Module Centers: 4; Indexing: No; Unlocking Pressure (lbf/sq in): 87.02
Item #: 62692389
Brand: Schunk
Model #: 1572468
Product Specifications
| Actuation Type | Pneumatic |
| Number of Module Centers | 4 |
| Indexing | No |
| Unlocking Pressure (lbf/sq in) | 87.02 |
| Unlocking Pressure (bar) | 6.00 |
| Repeatability (mm) | 0.0050 |
| Repeatability (Decimal Inch) | 0.000196 |
| EDM Base | No |
| Clamping Force (N) | 16.00 |

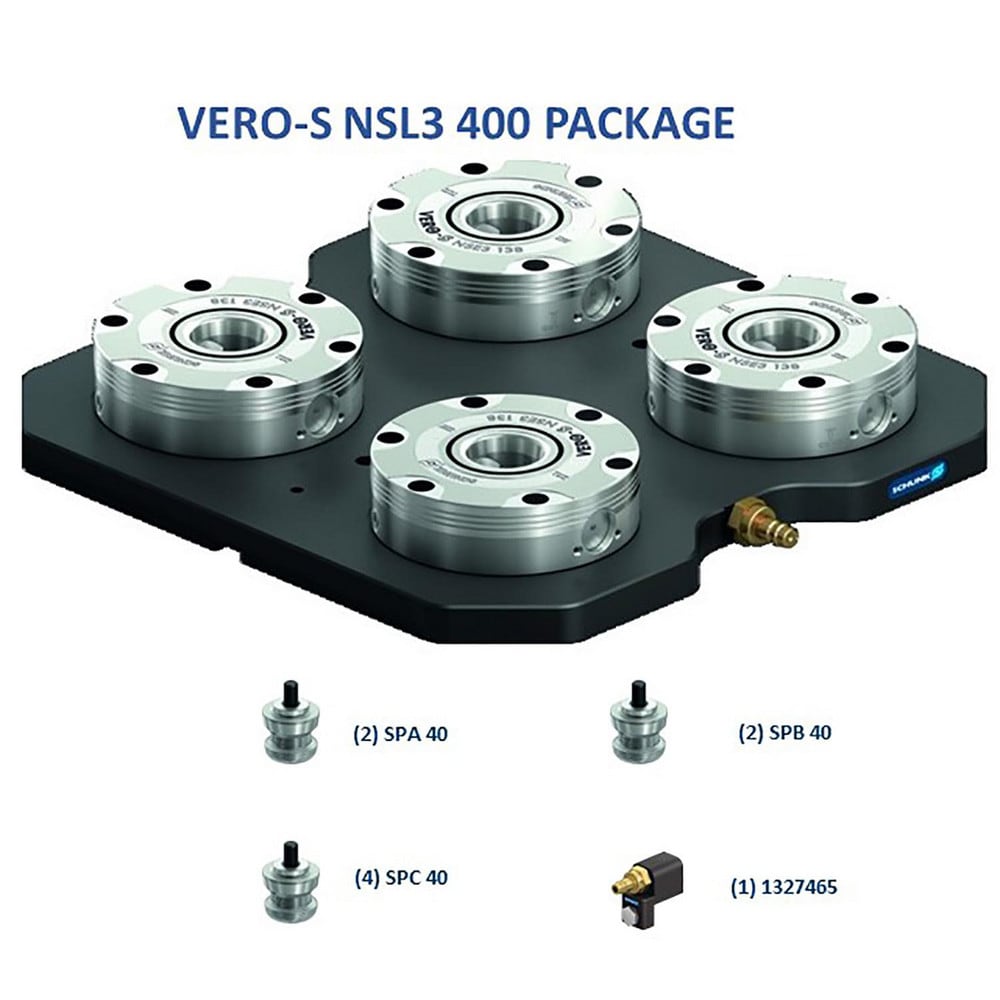

| Additional Information | 4 Module NSL pallet with clamping pins, quick connect & Adaptor Coupler |
| Material | Stainless Steel |
| Series | VERO-S |
| Overall Diameter (Mm - 4 Decimals) | 564.3000 |
| Overall Length (mm) | 399.0000 |
| Overall Width (mm) | 399.0000 |
| UNSPSC Code | 27112100 |
| Actuation Type | Pneumatic |
| Number of Module Centers | 4 |
| Indexing | No |
| Unlocking Pressure (lbf/sq in) | 87.02 |
| Unlocking Pressure (bar) | 6.00 |
| Repeatability (mm) | 0.0050 |
| Repeatability (Decimal Inch) | 0.000196 |
| EDM Base | No |
| Clamping Force (N) | 16.00 |
| Additional Information | 4 Module NSL pallet with clamping pins, quick connect & Adaptor Coupler |
| Material | Stainless Steel |
| Series | VERO-S |
| Overall Diameter (Mm - 4 Decimals) | 564.3000 |
| Overall Length (mm) | 399.0000 |
| Overall Width (mm) | 399.0000 |
| UNSPSC Code | 27112100 |
| MSC Part # | 62692389 |
| Mfr Part # | 1572468 |
| Country of Origin Country of Origin is subject to change | Germany |
