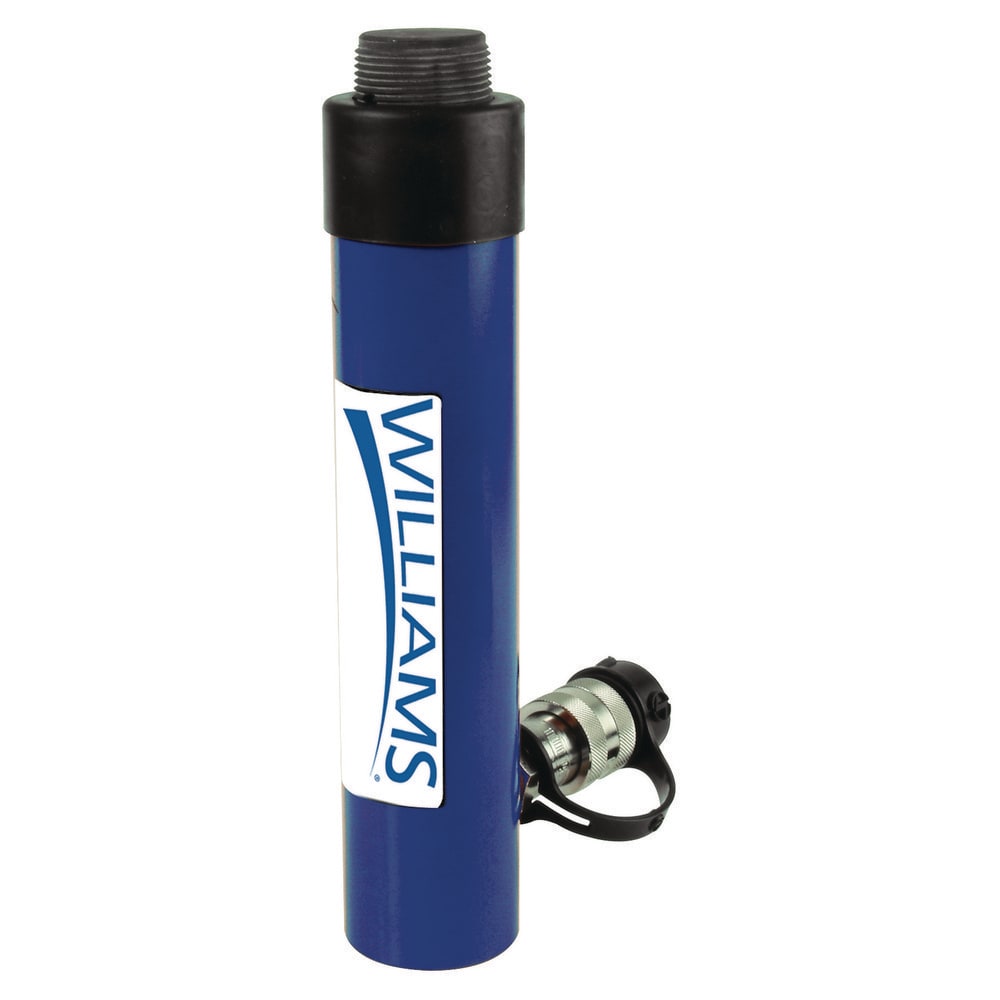

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 10 TON; Stroke Length: 5.95; Piston Stroke (Decimal Inch): 5.95; Oil Capacity: 13.00; Cylinder Effective Area: 2.24; Lowered Height: 11.46
Item #: 54379201
Brand: Williams
Model #: 6CT10T06
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 10 TON |
| Stroke Length | 5.95 |
| Piston Stroke (Decimal Inch) | 5.95 |
| Oil Capacity | 13.00 |
| Cylinder Effective Area | 2.24 |
| Lowered Height | 11.46 |
| Retracted Length | 11.46 |
| Extended Length | 17.41 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.26 |
| Rod Diameter | 1.49 |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .26 |
| Saddle Diameter | .094 |
| Y Center Hole Diameter | 1.25 |
| Maximum Height (Inch) | 17.41 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 10 TON |
| Stroke Length | 5.95 |
| Piston Stroke (Decimal Inch) | 5.95 |
| Oil Capacity | 13.00 |
| Cylinder Effective Area | 2.24 |
| Lowered Height | 11.46 |
| Retracted Length | 11.46 |
| Extended Length | 17.41 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.26 |
| Rod Diameter | 1.49 |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .26 |
| Saddle Diameter | .094 |
| Y Center Hole Diameter | 1.25 |
| Maximum Height (Inch) | 17.41 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54379201 |
| Mfr Part # | 6CT10T06 |
| Country of Origin Country of Origin is subject to change | Taiwan |
