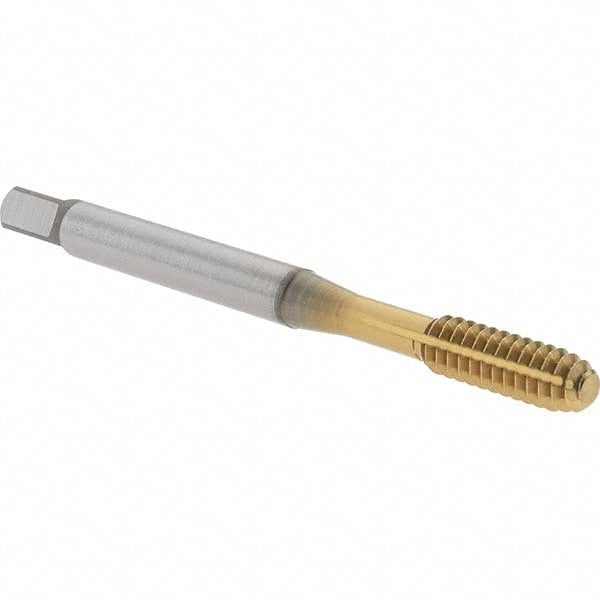

Thread Forming Tap: #10-24 UNC, 2B Class of Fit, Bottoming, High-Speed Steel, TiN Coated
Item #: 04623328
Brand: OSG
Model #: 2865405
Product Specifications
| Thread Size (Inch) | #10-24 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Chamfered Threads | 1.5-2P |
| Material | High-Speed Steel |
| Coating/Finish | TiN |
| Coolant Through | No |
| Class Of Fit | 2B |
| Overall Length (Inch) | 2-3/8 |
| Overall Length (Decimal Inch) | 2.3750 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4920 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (Decimal Inch) | 0.2500 |
| Material Application | Cast Aluminum; Low-Carbon Steel; Aluminum; Medium-Carbon Steel |
| Application | Blind Hole Threading |
| Series | 285 |
| Tapping Depth (Decimal Inch) | 0.8660 |
| Square Size (Decimal Inch) | 0.1520 |
| Threads per Inch | 24 |
| Material Application Code | P; N |
| Trade Name | HY-PRO NRT |
| UNSPSC Code | 27112806 |
