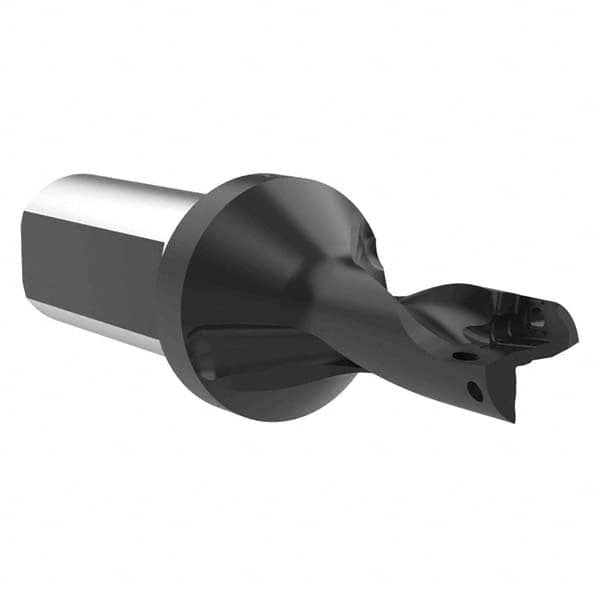

Allied Machine and Engineering - 1" Max Drill Depth, 2xD, 12.7mm Diam, Indexable Insert Drill
Item #: 12325064
Brand: Allied Machine and Engineering
Model #: D2030500I-075F
| Product Specifications | |
|---|---|
| Drill Style | D203 |
| Drill Diameter (mm) | 12.70 |
| Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Decimal Inch) | 1.0000 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Diameter (mm) | 12.70 |
| Overall Length/Projection (Decimal Inch) | 3.5200 |
| Insert Compatibility (Outside or Peripheral) | 4T-030203P |
| Insert Compatibility | 4T-030203C; 4T-030203P |
| Body Length (Decimal Inch) | 1.8270 |
| Shank Length (Decimal Inch) | 1.6930 |
| Collar Diameter (Decimal Inch) | 1.0630 |
| Series | 4Tex |
