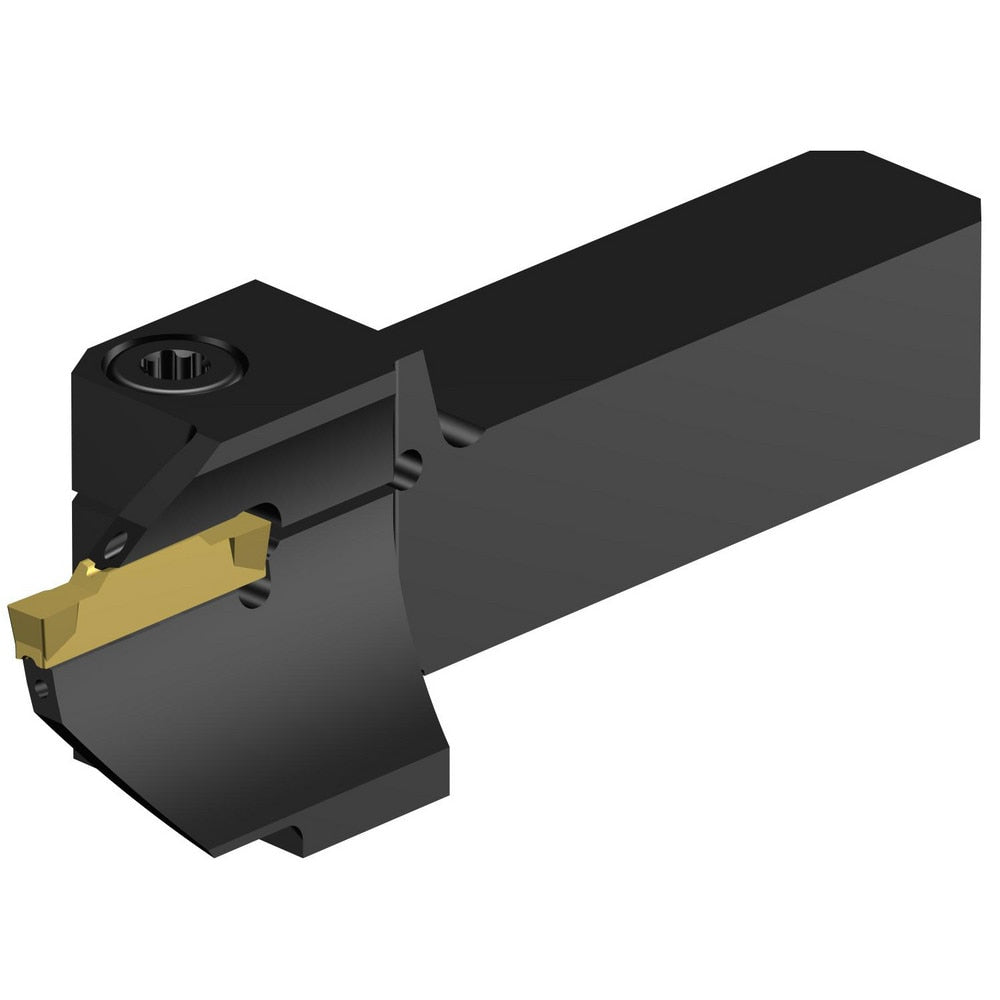

Indexable Grooving Toolholder: C2A-QSA12-RFH18B-040CB, Internal or External, Left Hand, Right Hand & Neutral, 2.3620" Max Groove Width
Item #: 01222744
Brand: Sandvik Coromant
Model #: 8289908
Product Specifications
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 4.00 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Maximum Depth of Cut (mm) | 18.01 |
| Minimum Groove Width (Decimal Inch) | 1.5750 |
| Minimum Groove Width (mm) | 40.01 |
| Maximum Groove Width (mm) | 59.99 |
| Toolholder Style | C2A-QSA..RF..B..CB |
| Maximum Groove Width (Decimal Inch) | 2.3620 |
| Insert Holding Method | Screw; Clamp |
| Compatible Insert Size Code | H2 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (mm) | 19.05 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | CoroCut 2 |
| Overall Length (mm) | 107.11 |
| Overall Length (Decimal Inch) | 4.2170 |
| Back of Bar to Cutting Edge (mm) | 107.11 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2170 |
| Center to Cutting Edge (Decimal Inch) | 0.7700 |
| Center to Cutting Edge (mm) | 19.56 |
| Head Height (Decimal Inch) | 0.75 |
| Head Height (mm) | 19.050 |
| Head Length (Decimal Inch) | 2.1896 |
| Head Length (mm) | 55.62 |
| UNSPSC Code | 27112809 |
| Vibration Dampening | No |
| Maximum Groove Outside Diameter (mm) | 59.99 |
| Maximum Groove Outside Diameter (Decimal Inch) | 2.3620 |
| Minimum Axial Groove Inside Diameter(mm) | 40.0100 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.5750 |
| Mount Type | Clamp |
| Full Radius Insert | No |
| Manufacturers Catalog Number | C2A-QSA12-RFH18B-040CB |
| Toolholder Material | Steel |
| Insert Hand | Neutral; Left Hand; Right Hand |
| Complete Insert Compatibility | C2I-H2-0400- |
| Coolant Through | Yes |
