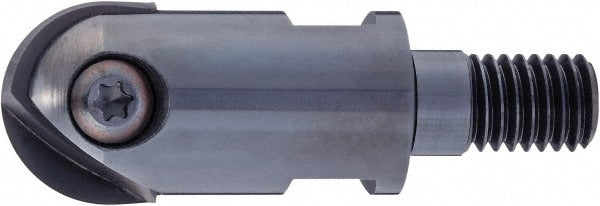

Indexable Ball Nose End Mill: 3/8" Cut Dia, High Speed Steel, 1.024" OAL
Item #: 55686257
Brand: OSG
Model #: 52604000
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (mm) | 9.53 |
| Tool Material | High-Speed Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Shank Type | Straight |
| Shank Diameter (Inch - 0 Decimals) | 0.3540 |
| Shank Diameter (Decimal Inch) | 0.3540 |
| Insert Holding Method | Screw |
| Compatible Insert Style | PFB |
| Toolholder Style | PFB |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 1.0240 |
| Series | 52604 |
| Head Length (Decimal Inch) | 1.0240 |
| Weldon Flat | No |
| Number of Side Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.3540 |
| Cutting Diameter (Inch) | 3/8 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (mm) | 9.53 |
| Tool Material | High-Speed Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Shank Type | Straight |
| Shank Diameter (Inch - 0 Decimals) | 0.3540 |
| Shank Diameter (Decimal Inch) | 0.3540 |
| Insert Holding Method | Screw |
| Compatible Insert Style | PFB |
| Toolholder Style | PFB |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 1.0240 |
| Series | 52604 |
| Head Length (Decimal Inch) | 1.0240 |
| Weldon Flat | No |
| Number of Side Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.3540 |
| Cutting Diameter (Inch) | 3/8 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| UNSPSC Code | 27112803 |
| MSC Part # | 55686257 |
| Mfr Part # | 52604000 |
| Country of Origin Country of Origin is subject to change | Japan |
