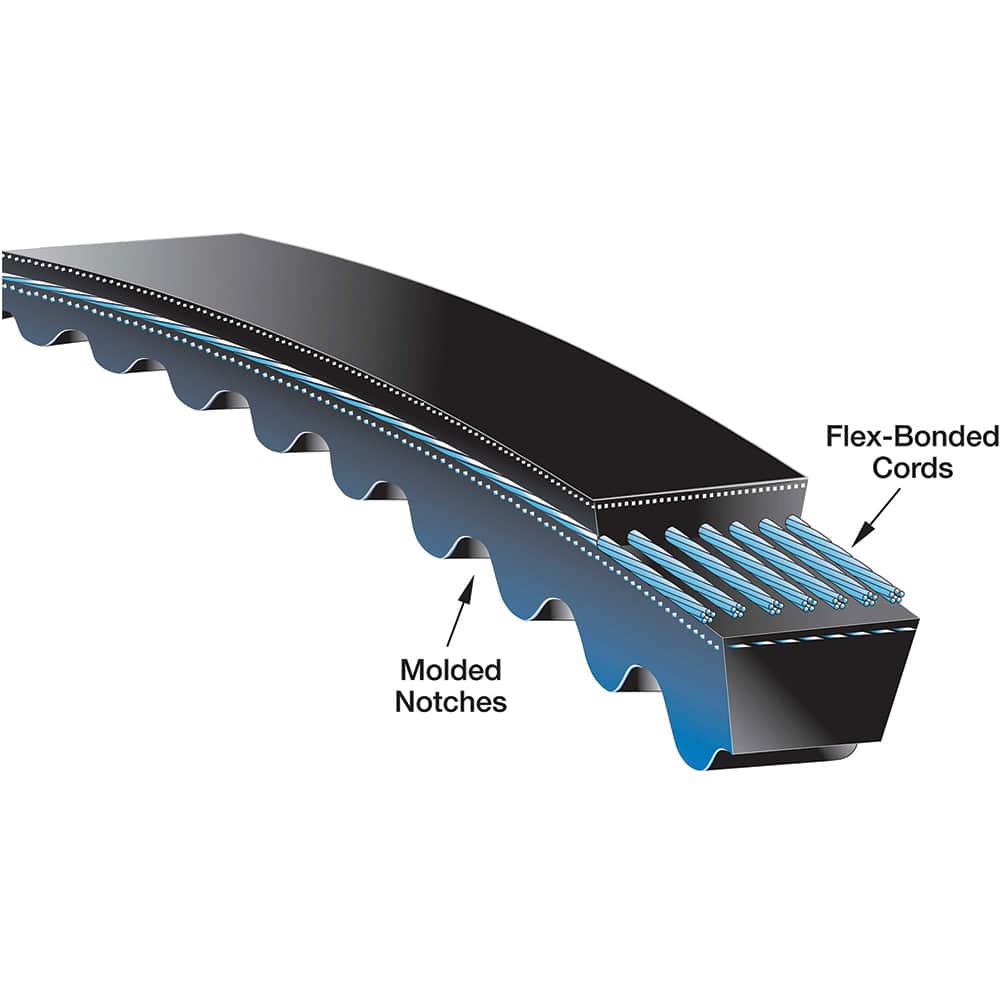

Gates - Belts Belt Style: V-Belts Belt Section: XPA
Item #: 96327663
Brand: Gates
Model #: 942011632
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: XPA ; Outside Length: 65.200 (Decimal Inch); Outside Length: 1656.08 (mm); Belt Width: 0.485 (Decimal Inch); Belt Width: 12.32 (mm)
| Belt Style | V-Belts |
| Belt Section | XPA |
| Outside Length (Decimal Inch) | 65.200 |
| Outside Length (mm) | 1656.08 |
| Belt Width (Decimal Inch) | 0.485 |
| Belt Width (mm) | 12.32 |
| Belt Number | XPA1632 |
| Belt Internal Length (Decimal Inch) | 63.06 |
| Belt Internal Length (mm) | 1601.72 |
| Number of Ribs | 0.000 |
| Number of Teeth | 0 |
| Belt Pitch | 0.2 |
| Material | Ethylene Compound |
| Belt Height | 0.34 |
| Color | Black |
| Style | Bandless V-Belt |
| Maximum Temperature (F) | 250 |
