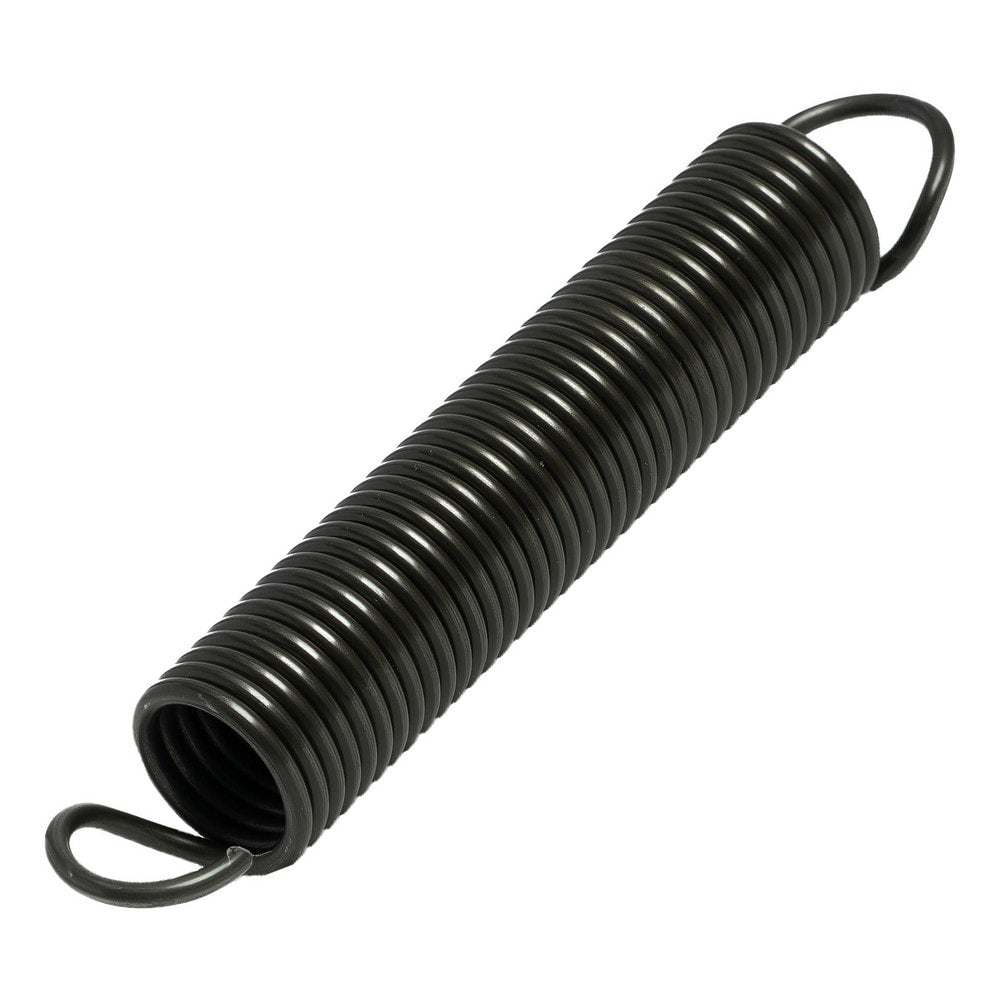

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 18.0000; Spring Rate: 5.4000; Material: Music Wire; Overall Length (Decimal Inch): 12.1360
Item #: 02945715
Brand: Associated Spring Raymond
Model #: MCEM1802500303M
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 18.0000 |
| Spring Rate | 5.4000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 12.1360 |
| Initial Tension (N) | 48.43 |
| Maximum Extended Length (mm) | 504.36 |
| Free Length (mm) | 303.200 |
| Inside Hook Length (Fractional Inch) | 11-15/16 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 2.50 |
| UNSPSC Code | 31161907 |
