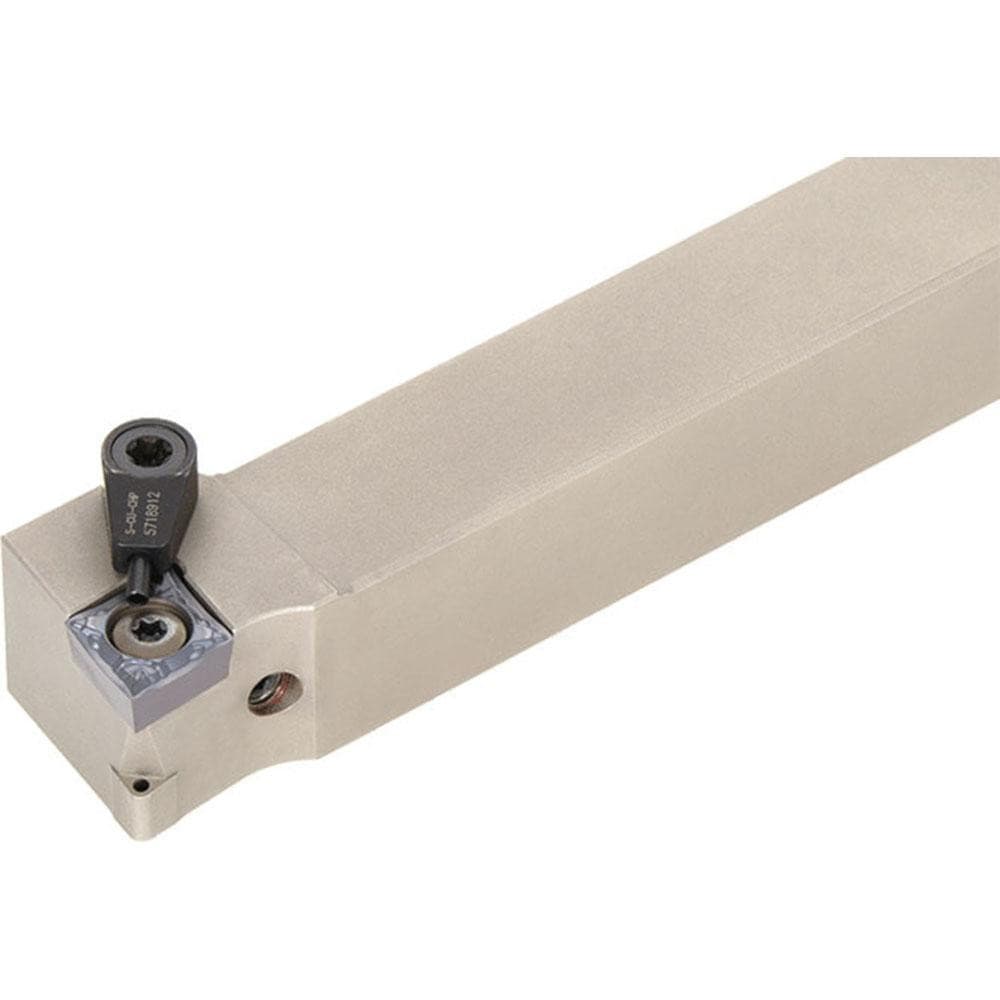

Indexable Turning Toolholder: JSCL2CR1616X09-CHP, 95.000 deg Lead Angle, Screw
Item #: 16315228
Brand: Tungaloy
Model #: 6766287
Product Specifications
| Toolholder Style | JSCL |
| Hand of Holder | Right Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | CC..32.5. |
| Insert Holding Method | Screw |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CC..32.5. |
| Multi-use Tool | No |
| Series | JSCL |
| Cutting Tool Application | Swiss |
| Head Length (mm) | 18.00 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1560 |
