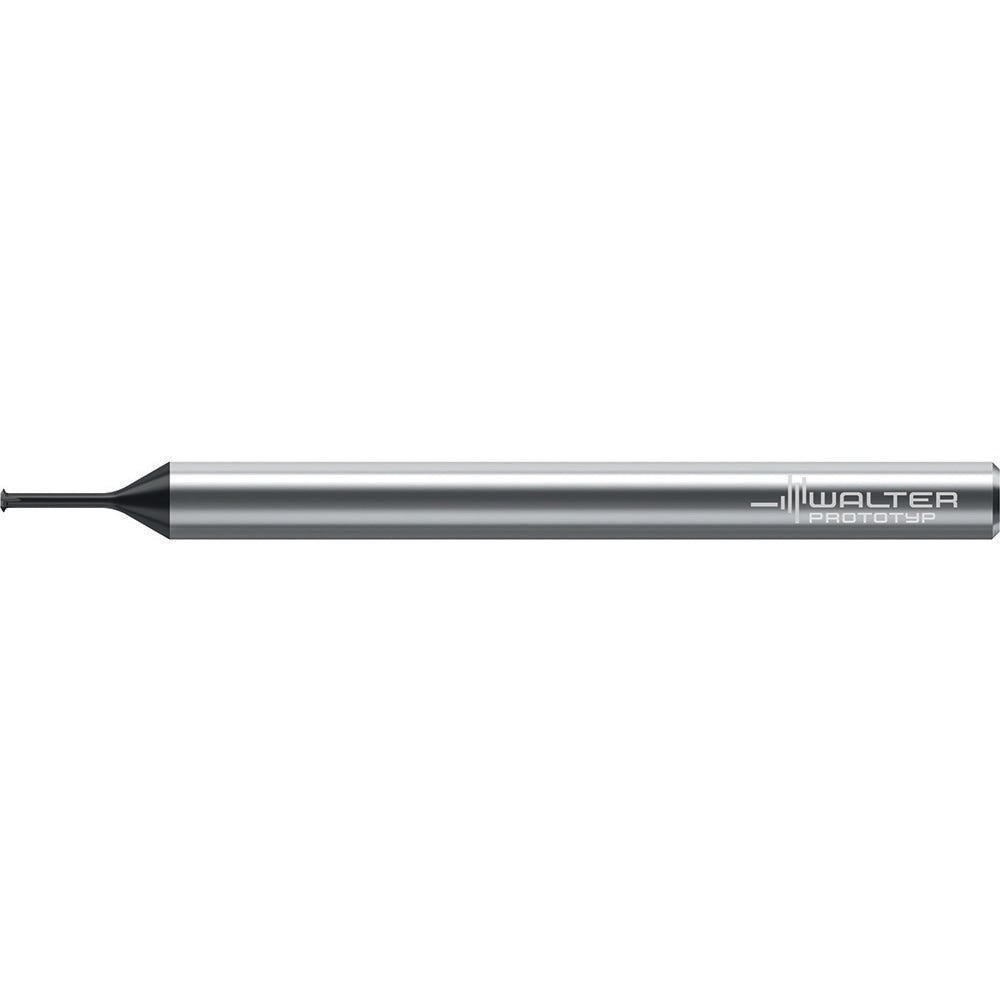

Helical Flute Thread Mill: #0-80, Internal, 4 Flute, 3.0000 mm Shank Dia, Solid Carbide
Item #: 53442422
Brand: Walter-Prototyp
Model #: 8120195
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | #0-80 |
| Thread Type | Internal |
| Shank Diameter (mm) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Cutting Diameter (mm) | 1.15 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0453 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0125 |
| Length of Cut (mm) | 0.3200 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 38.0000 |
| Overall Length (Decimal Inch) | 1.4961 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Series | TC630-UNF-A0F |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Teeth Per Inch | 80 |
| UNSPSC Code | 23242117 |
