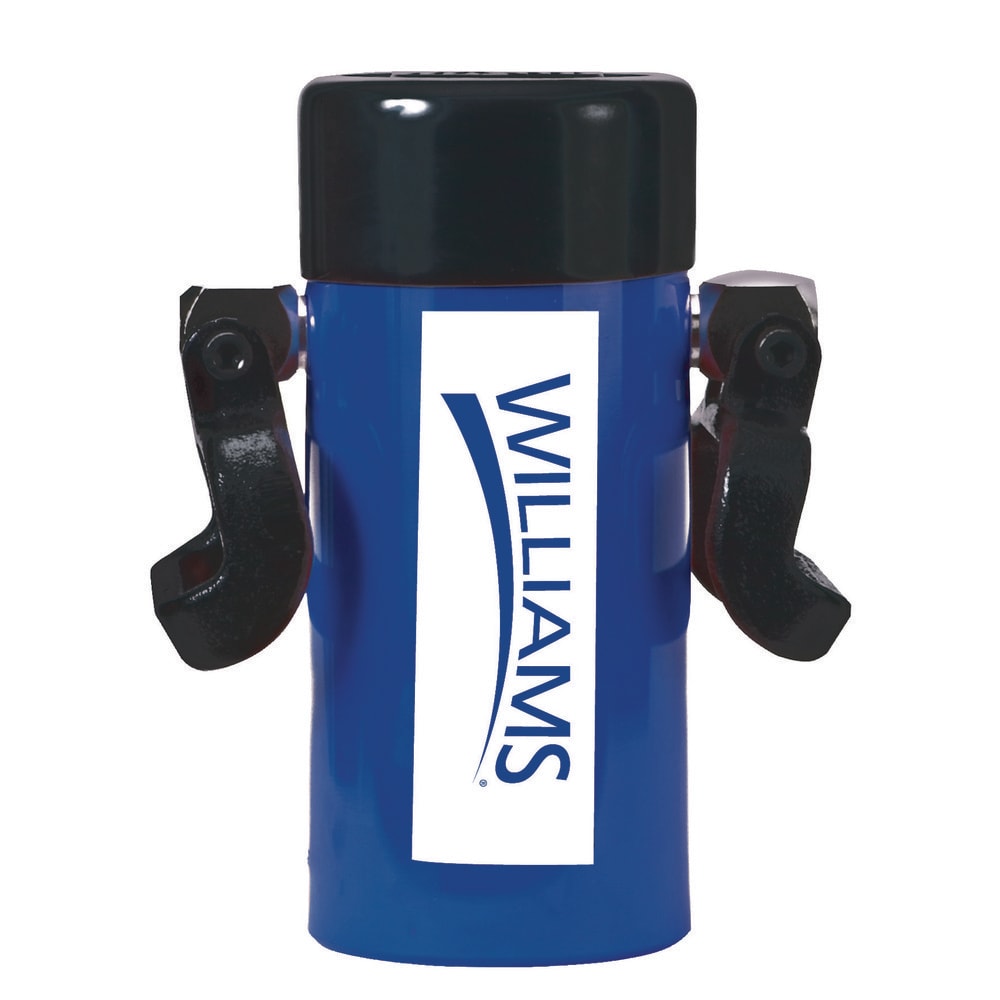

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 55 TON; Stroke Length: 6.22; Piston Stroke (Decimal Inch): 6.22; Oil Capacity: 68.36; Cylinder Effective Area: 10.99; Lowered Height: 11.14
Item #: 54382528
Brand: Williams
Model #: 6C55T06
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 55 TON |
| Stroke Length | 6.22 |
| Piston Stroke (Decimal Inch) | 6.22 |
| Oil Capacity | 68.36 |
| Cylinder Effective Area | 10.99 |
| Lowered Height | 11.14 |
| Retracted Length | 11.14 |
| Extended Length | 17.36 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 5.00 |
| Rod Diameter | 3.74 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .42 |
| Saddle Diameter | 2.76 |
| Y Center Hole Diameter | 3.74 |
| Maximum Height (Inch) | 17.36 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 55 TON |
| Stroke Length | 6.22 |
| Piston Stroke (Decimal Inch) | 6.22 |
| Oil Capacity | 68.36 |
| Cylinder Effective Area | 10.99 |
| Lowered Height | 11.14 |
| Retracted Length | 11.14 |
| Extended Length | 17.36 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 5.00 |
| Rod Diameter | 3.74 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .42 |
| Saddle Diameter | 2.76 |
| Y Center Hole Diameter | 3.74 |
| Maximum Height (Inch) | 17.36 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54382528 |
| Mfr Part # | 6C55T06 |
| Country of Origin Country of Origin is subject to change | Taiwan |
