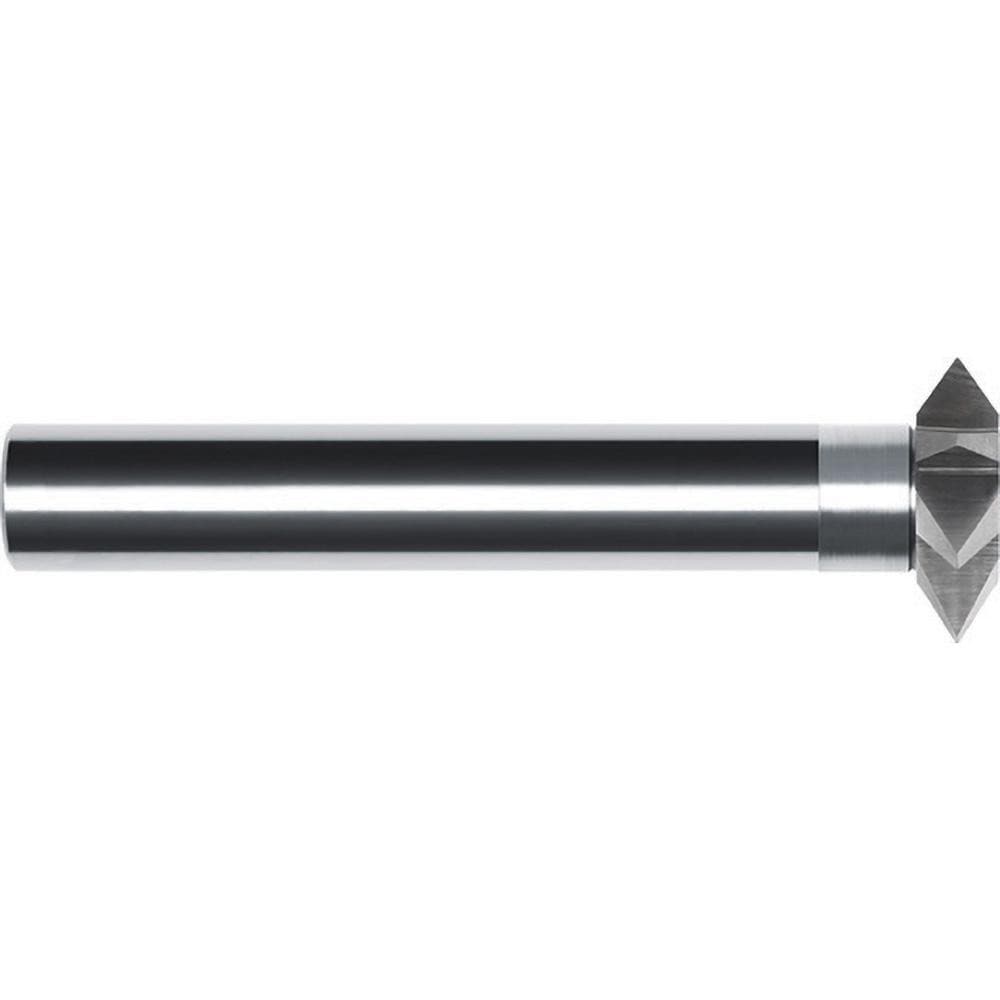

Single Profile Thread Mills; Maximum Threads Per Inch: 32; Minimum Pitch (Decimal Inch): 0.0625; Minimum Threads Per Inch: 16; Maximum Pitch (Decimal Inch): 0.0313; Material: Solid Carbide; Thread Type: Internal, External
Item #: 73517112
Brand: Internal Tool
Model #: 88-1100
Product Specifications
| Maximum Threads Per Inch | 32 |
| Minimum Pitch (Decimal Inch) | 0.0625 |
| Minimum Threads Per Inch | 16 |
| Maximum Pitch (Decimal Inch) | 0.0313 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 1/2-32; 1/2-16 |
| Thread Depth (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/4 |
| Minimum Nominal Diameter (Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.2800 |
| Neck Length (Decimal Inch) | 0.2500 |
| Series | 88 |
| Thread Standard | UN |
| Number Of Flutes | 6 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | Natural |
| UNSPSC Code | 23242117 |
| Maximum Threads Per Inch | 32 |
| Minimum Pitch (Decimal Inch) | 0.0625 |
| Minimum Threads Per Inch | 16 |
| Maximum Pitch (Decimal Inch) | 0.0313 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 1/2-32; 1/2-16 |
| Thread Depth (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/4 |
| Minimum Nominal Diameter (Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.2800 |
| Neck Length (Decimal Inch) | 0.2500 |
| Series | 88 |
| Thread Standard | UN |
| Number Of Flutes | 6 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | Natural |
| UNSPSC Code | 23242117 |
| MSC Part # | 73517112 |
| Mfr Part # | 88-1100 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
