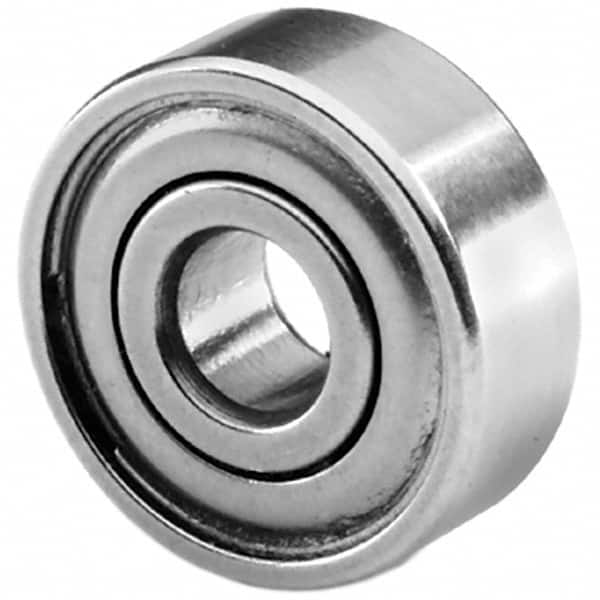

Tritan - Radial Ball Bearings; Type: Miniature ; Style: Double Shield ; Bore Diameter (Decimal Inch): 0.2360 ; Bore Diameter (mm): 6.00 ; Outside Diameter (mm): 13.00 ; Outside Diameter (Decimal Inch): 0.5100
Item #: 19816776
Brand: Tritan
Model #: SSL1360 ZZ SRL
Product Specifications
Radial Ball Bearings; Type: Miniature ; Style: Double Shield ; Bore Diameter (Decimal Inch): 0.2360 ; Bore Diameter (mm): 6.00 ; Outside Diameter (mm): 13.00 ; Outside Diameter (Decimal Inch): 0.5100
| Type | Miniature |
| Style | Double Shield |
| Bore Diameter (Decimal Inch) | 0.2360 |
| Bore Diameter (mm) | 6.00 |
| Outside Diameter (mm) | 13.00 |
| Outside Diameter (Decimal Inch) | 0.5100 |
| Width (Decimal Inch) | 0.5100 |
| Width (mm) | 12.95 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Static Load Capacity (Lb.) | 49 |
| Dynamic Load Capacity (Lb.) | 115 |
| Inner Ring Width (Decimal Inch) | 0.2000 |
| Minimum Operating Temperature Fahrenheit | -20 |
| Maximum Operating Temperature Fahrenheit | 212 |
