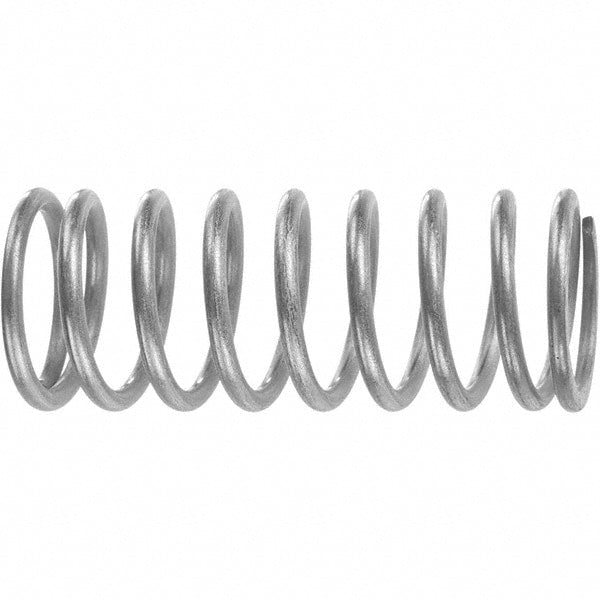

Precision Compression Spring: 0.7600" OD, 3-3/4" Free Length
Item #: 94844305
Brand: Associated Spring Raymond
Model #: C0764-092-3750M
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7600 |
| Free Length (Inch) | 3-3/4 |
| Spring Rate | 21.9 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 31.10 |
| Material | Carbon Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0920 |
| Hole Diameter (Decimal Inch) | 0.5800 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 1.6900 |
| Free Length (Decimal Inch) | 3.7500 |
| Color | Silver |
| Standards | AMS 5112; ASTM A228 |
| UNSPSC Code | 31161904 |
| Country of Origin | China |
