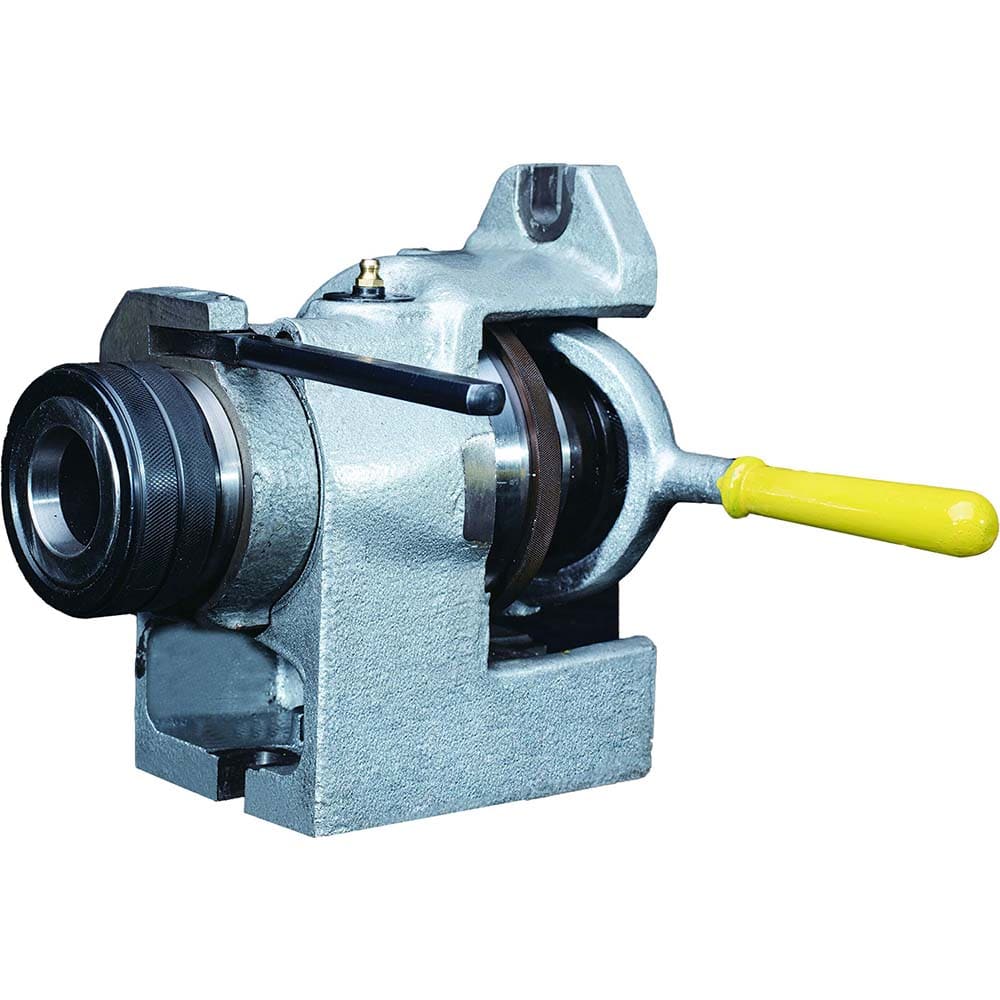

5C Collet Index 5C Compatible, 24 Increment, Horizontal & Vertical Standard Collet Indexer
Item #: 19593722
Brand: Value Collection
Model #: VC-5C Collet Index
Product Specifications
| Type | Standard Collet Indexer |
| Orientation Type | Horizontal/Vertical |
| Number of Indexing Increments | 24 |
| Collet Series Compatibility | 5C |
| Centerline Height (Inch) | 4 |
| Centerline Height (Decimal Inch) | 4.0000 |
| Indexing Accuracy (Minutes) | 2.90 |
| Squareness - Base to Face (mm) | 0.00 |
| Squareness - Base to Face (Decimal Inch) | 0.000787 |
| Concentricity of Spindle (mm) | 0.0120 |
| Concentricity of Spindle (Decimal Inch) | 0.0005 |
| Spindle Runout (mm) | 0.01 |
| Spindle Runout (Decimal Inch) | 0.000315 |
| Through Hole Size (Inch) | 1.5256 |
| Operation Type | Manual |
| Base Width (Inch) | 5.3937; 137.00 |
| Base Width (Decimal Inch) | 5.3937; 137.00 |
| Base Depth (mm) | 100.00 |
| Base Depth (Decimal Inch) | 3.9370 |
| Base Depth (Inch) | 3.9370 |
| Overall Height (mm) | 199.00000 |
| Overall Height (Inch) | 8 |
| Overall Height (Decimal Inch) | 7.8346 |
| Centerline Height (mm) | 101.60 |
