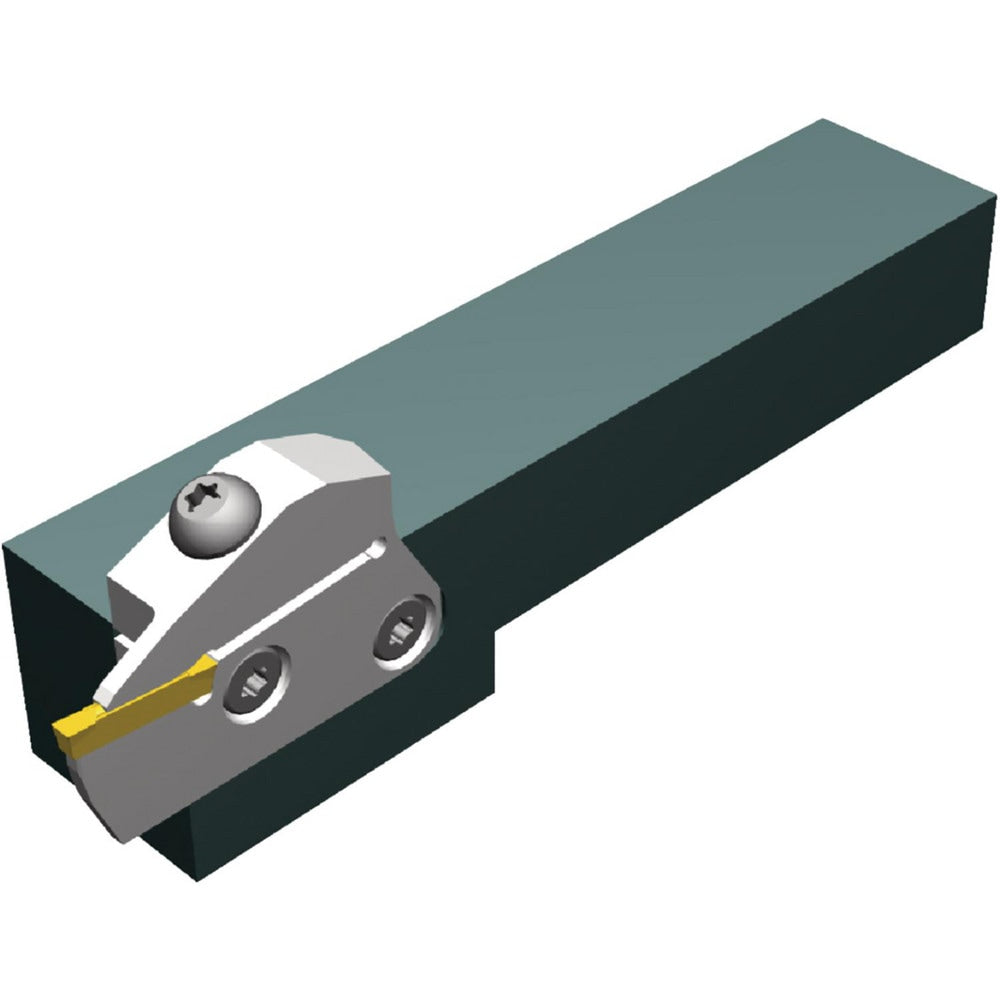

Brand: Widia / Part #: 5349629
Item #: 98387590
Brand: Widia
Model #: 5349629
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 22.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 6.00 |
| Minimum Groove Width (mm) | 1.40 |
| Toolholder Style | WGMSR |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0600; 0400; 0500; 0200; 0300; 0100; 094 |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 95.780 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | WMT |
| Overall Length (mm) | 126.0000 |
| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5450 |
| Head Height (mm) | 31.560 |
| Head Length (mm) | 30.22 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 100.0 |
| Coolant Through | No |
