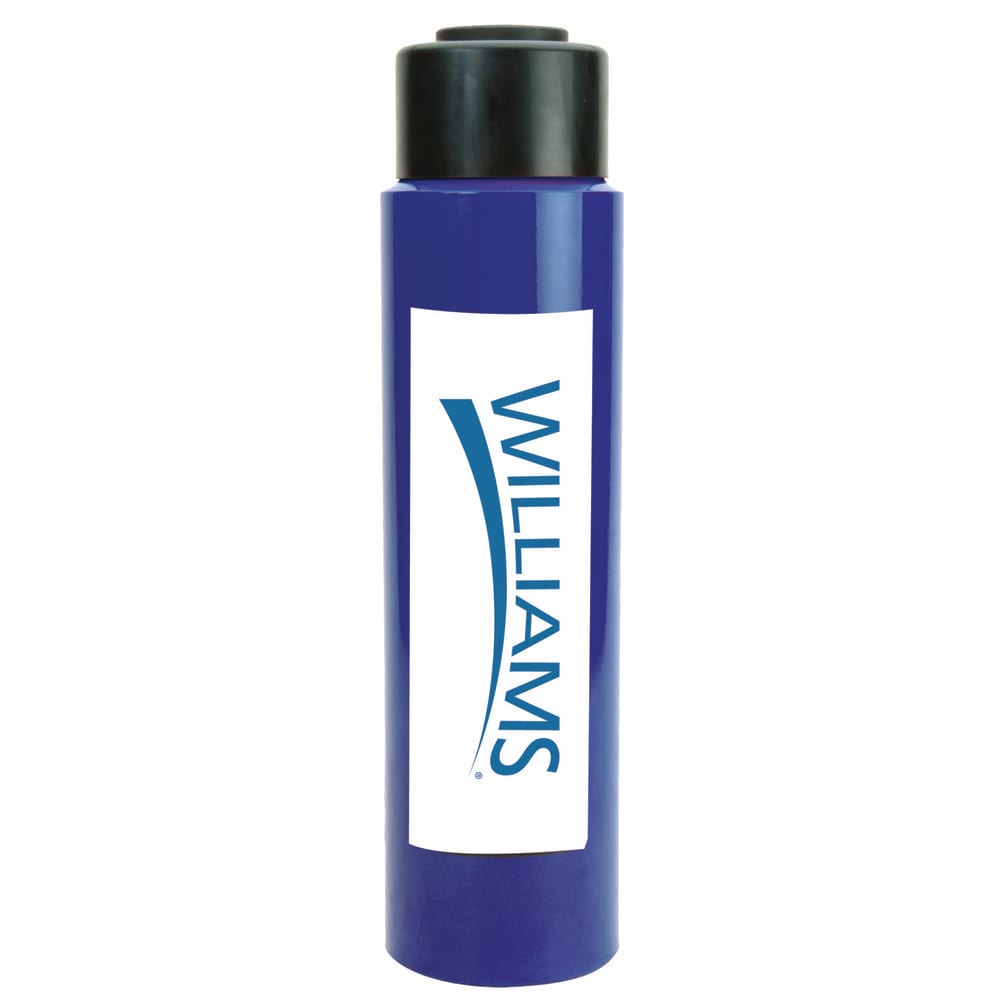

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 30 TON; Stroke Length: 8.27; Piston Stroke (Decimal Inch): 8.27; Oil Capacity: 53.87; Cylinder Effective Area: 6.49; Lowered Height: 15.24
Item #: 54376264
Brand: Williams
Model #: 6C30T08
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 30 TON |
| Stroke Length | 8.27 |
| Piston Stroke (Decimal Inch) | 8.27 |
| Oil Capacity | 53.87 |
| Cylinder Effective Area | 6.49 |
| Lowered Height | 15.24 |
| Retracted Length | 15.24 |
| Extended Length | 23.51 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 4.00 |
| Rod Diameter | 2.87 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .69 |
| Saddle Diameter | 2.13 |
| Y Center Hole Diameter | 2.87 |
| Maximum Height (Inch) | 23.51 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
