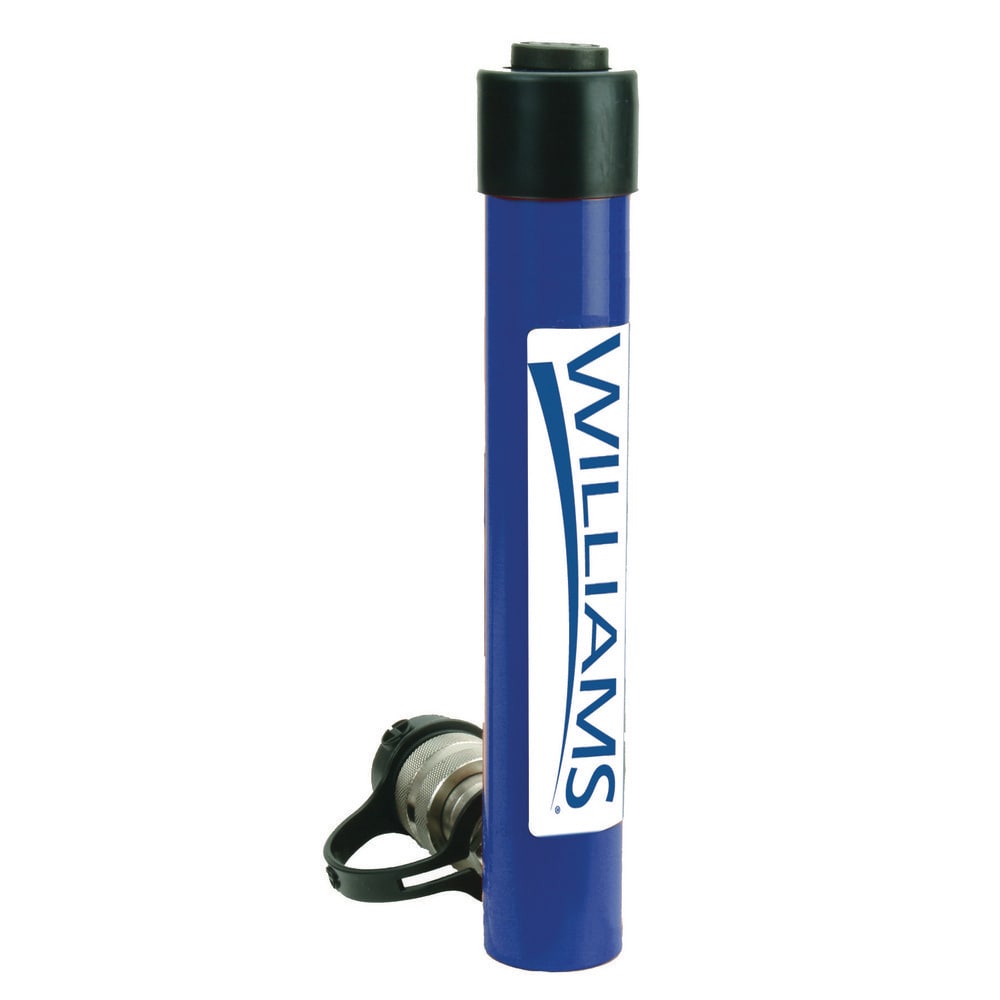

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 5 TON; Stroke Length: 9.09; Piston Stroke (Decimal Inch): 9.09; Oil Capacity: 9.09; Cylinder Effective Area: 1.00; Lowered Height: 12.72
Item #: 54376462
Brand: Williams
Model #: 6C05T09
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 5 TON |
| Stroke Length | 9.09 |
| Piston Stroke (Decimal Inch) | 9.09 |
| Oil Capacity | 9.09 |
| Cylinder Effective Area | 1.00 |
| Lowered Height | 12.72 |
| Retracted Length | 12.72 |
| Extended Length | 21.81 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 1.50 |
| Rod Diameter | 1.13 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .26 |
| Saddle Diameter | 1.00 |
| Y Center Hole Diameter | 1.13 |
| Maximum Height (Inch) | 21.81 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
