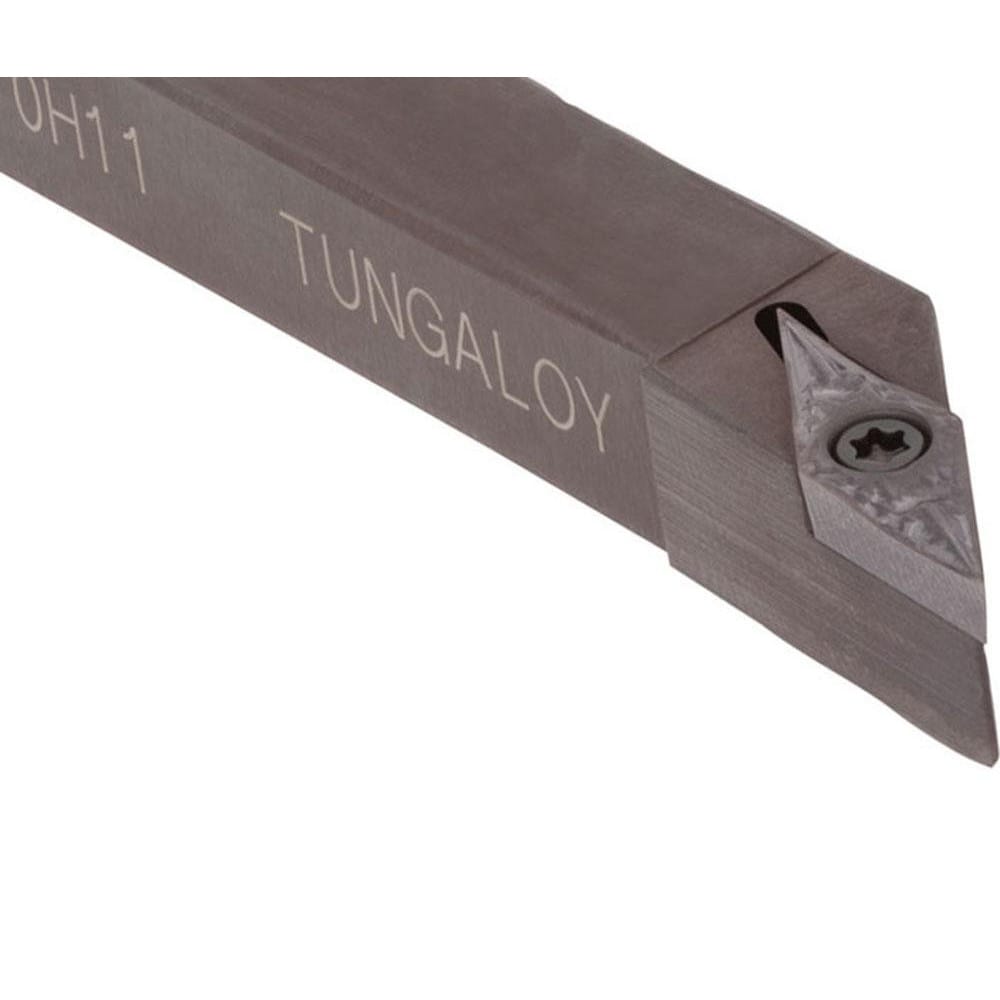

Indexable Turning Toolholder: SVJBR122, 93.000 deg Lead Angle, Screw
Item #: 66875048
Brand: Tungaloy
Model #: 6885430
Product Specifications
| Toolholder Style | SVJB |
| Hand of Holder | Right Hand |
| Lead Angle | 93.000 |
| Insert Compatibility | VB..22. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VB..22. |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | SVJB |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Swiss |
| Head Length (Decimal Inch) | 1.0630 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Toolholder Style | SVJB |
| Hand of Holder | Right Hand |
| Lead Angle | 93.000 |
| Insert Compatibility | VB..22. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VB..22. |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | SVJB |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Swiss |
| Head Length (Decimal Inch) | 1.0630 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| MSC Part # | 66875048 |
| Mfr Part # | 6885430 |
| Country of Origin Country of Origin is subject to change | Japan |
