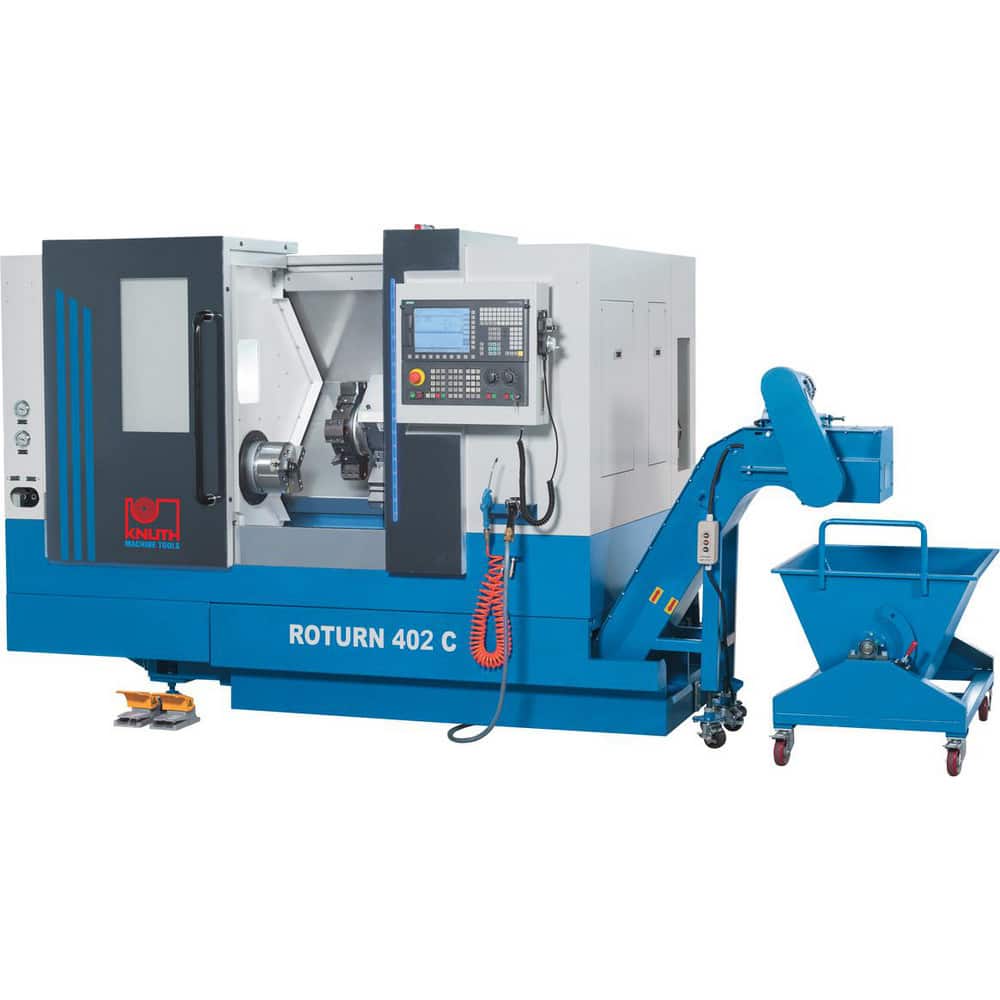

CNC Lathes; Precision: 0.00039 in; Swing (Inch): 16; Swing Over Cross Slide (Inch): 10; Distance Between Centers (Inch): 17; Tailstock Taper Size: Morse Taper 5; Spindle Bore Diameter (Inch): 3; Spindle Nose Designation: A2-8; Number Of Spindle Speeds: Va
Item #: 18842062
Brand: Knuth
Model #: 180628
Product Specifications
| Precision | 0.00039 in |
| Swing (Inch) | 16 |
| Swing Over Cross Slide (Inch) | 10 |
| Distance Between Centers (Inch) | 17 |
| Tailstock Taper Size | Morse Taper 5 |
| Spindle Bore Diameter (Inch) | 3 |
| Spindle Nose Designation | A2-8 |
| Number Of Spindle Speeds | Variable Speed |
| Controller | Siemens 828D |
| Cross Slide Travel Length (Inch) | 8 |
| Overall Length (Inch) | 150 |
| Overall Height (Inch) | 76 |
| Overall Depth (Inch) | 74 |
| Maximum Rpm | 2000 |
| Minimum RPM | 50.00 |
| Horsepower (Hp) | 11 |
| Phase | 3 |
| Voltage | 460 |
