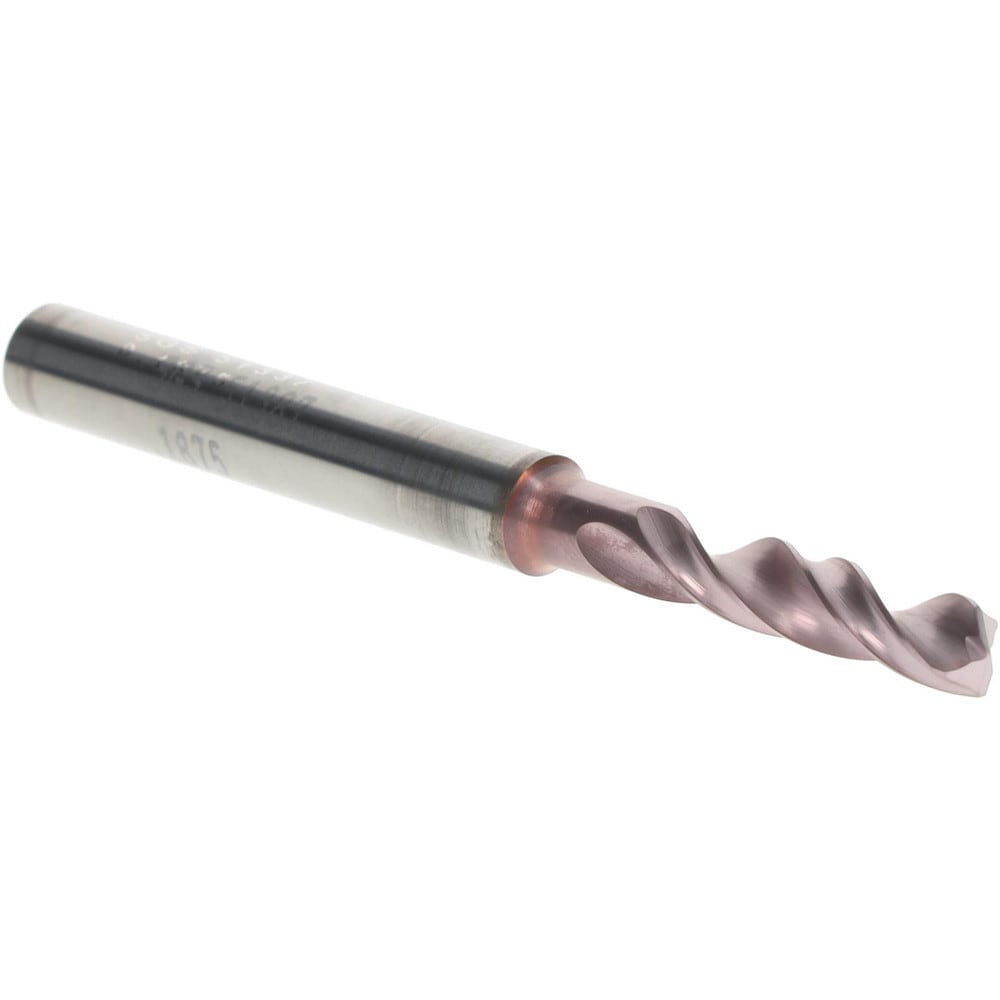

Screw Machine Length Drill Bit: 3/16" Dia, 145 deg Point, Solid Carbide
Item #: 57028888
Brand: SGS
Model #: 51387
Product Specifications
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiCN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 145 |
| Coolant Through | No |
| Primary Workpiece Material | Titanium; Alloy |
| Point Type | Notched |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-5/8 |
| Series | 135 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | TiCN |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-7/16 |
| Drill Bit Diameter Tolerance | +0.0002 to +0.0006 in |
| Flute Length (Inch) | 1 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiCN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 145 |
| Coolant Through | No |
| Primary Workpiece Material | Titanium; Alloy |
| Point Type | Notched |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-5/8 |
| Series | 135 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | TiCN |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-7/16 |
| Drill Bit Diameter Tolerance | +0.0002 to +0.0006 in |
| Flute Length (Inch) | 1 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
| MSC Part # | 57028888 |
| Mfr Part # | 51387 |
| Big Book Page # | 129 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
