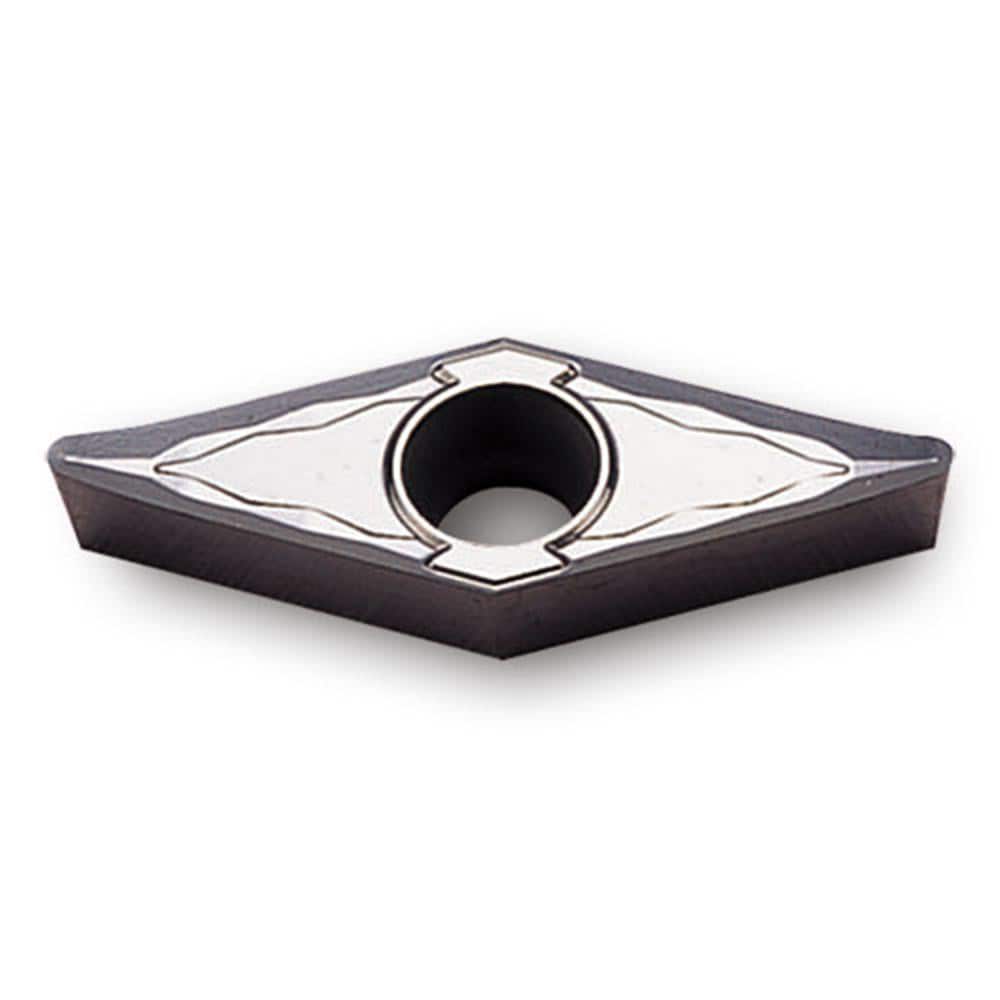

Turning Insert: VCGT331FL K10, Carbide
Item #: 64048911
Brand: Ingersoll Cutting Tools
Model #: 5513063
Product Specifications
| ANSI Insert Code | VCGT331 |
| ISO Insert Code | VCGT160404 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35 |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | VCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6540 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | VCGT160404FL K10 |
| Standards | ISO |
| Chip Breaker | FL |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
| ANSI Insert Code | VCGT331 |
| ISO Insert Code | VCGT160404 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35 |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | VCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6540 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | VCGT160404FL K10 |
| Standards | ISO |
| Chip Breaker | FL |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
| MSC Part # | 64048911 |
| Mfr Part # | 5513063 |
