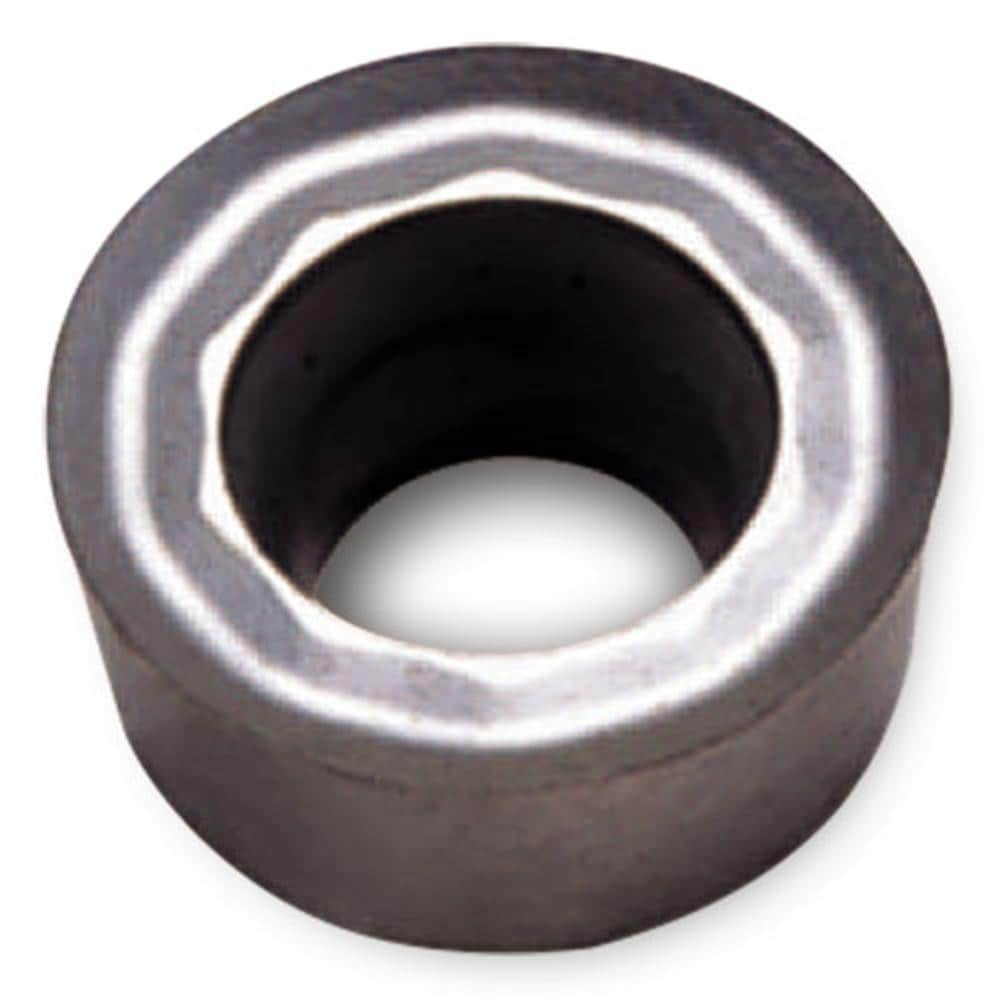

Turning Insert: RCGT1003MOFL K10, Carbide
Item #: 64048945
Brand: Ingersoll Cutting Tools
Model #: 5513118
Product Specifications
| ANSI Insert Code | RCGT100300 |
| ISO Insert Code | RCGT100300 |
| Relief Angle | 7 |
| Insert Style | RCGT |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | RCGT |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3940 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | RCGT1003MOFL K10 |
| Chip Breaker | FL |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| ANSI Size Code | 100300 |
| ISO Size Code | 100300 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1003 |
| ANSI Insert Code | RCGT100300 |
| ISO Insert Code | RCGT100300 |
| Relief Angle | 7 |
| Insert Style | RCGT |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | RCGT |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3940 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | RCGT1003MOFL K10 |
| Chip Breaker | FL |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| ANSI Size Code | 100300 |
| ISO Size Code | 100300 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1003 |
| MSC Part # | 64048945 |
| Mfr Part # | 5513118 |
