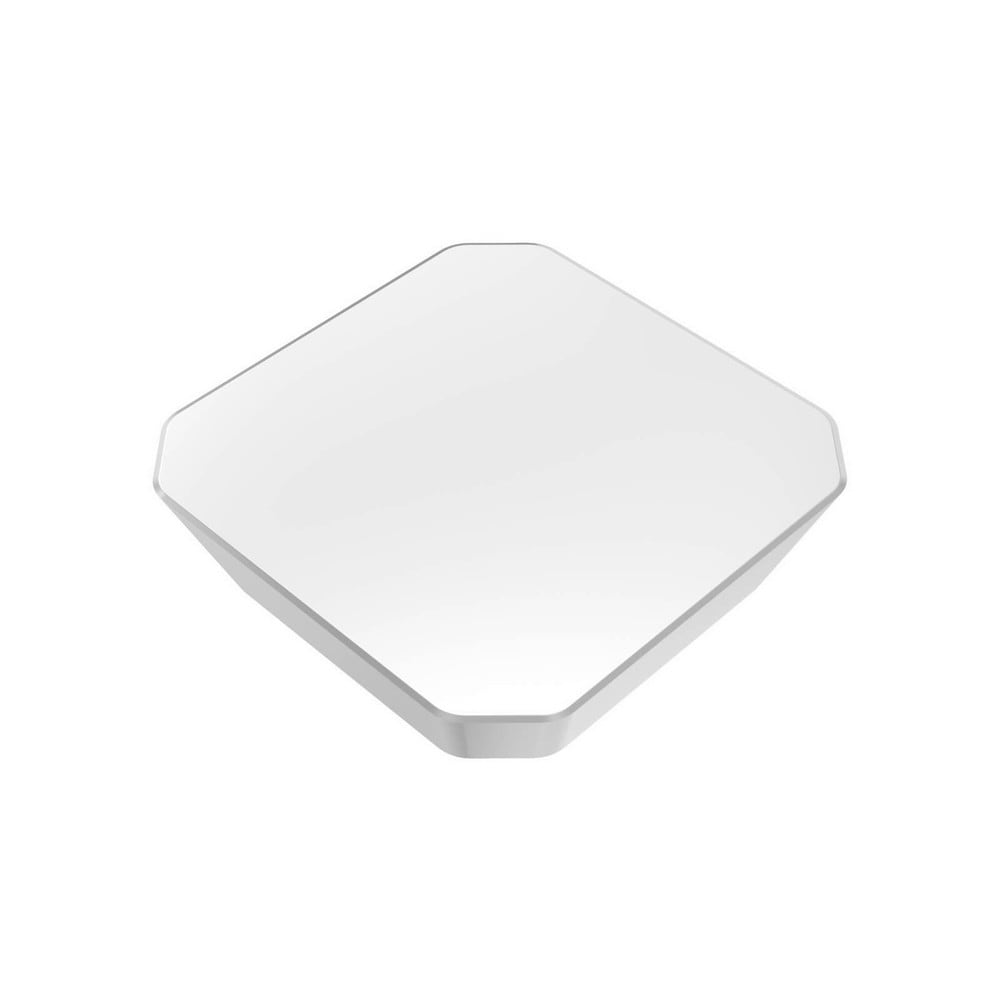

Milling Insert: SEKN1203AFTN-M14 MP3501, Carbide
Item #: 86386554
Brand: Seco
Model #: 10198742
Product Specifications
| Insert Style | SEKN |
| Insert Size | 12 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | MP3501 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiCN; Chrome; Al2O3 |
| Relief Angle | 20.000 |
| Insert Size Code | 1203AF |
| Material Grade | K40; K20; K30; P30; P40; P20 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3465 |
| Series | SEKN |
| Coating Process | Duratomic |
| Cutting Edge Effective Length (Decimal Inch) | 0.3465 |
| Rake | Positive |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | SEKN1203AFTN-M14 |
| Iso Code | SEKN1203AFTN-M14 |
| Standards | ISO; ANSI |
| Rake Angle | 0.000 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 10198742 |
| Cutter Series Compatibility | R220.13-12 |
| Chip Breaker | M14 |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Material Application | Steel |
| Insert Holding Method | Clamp |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Sweden |
