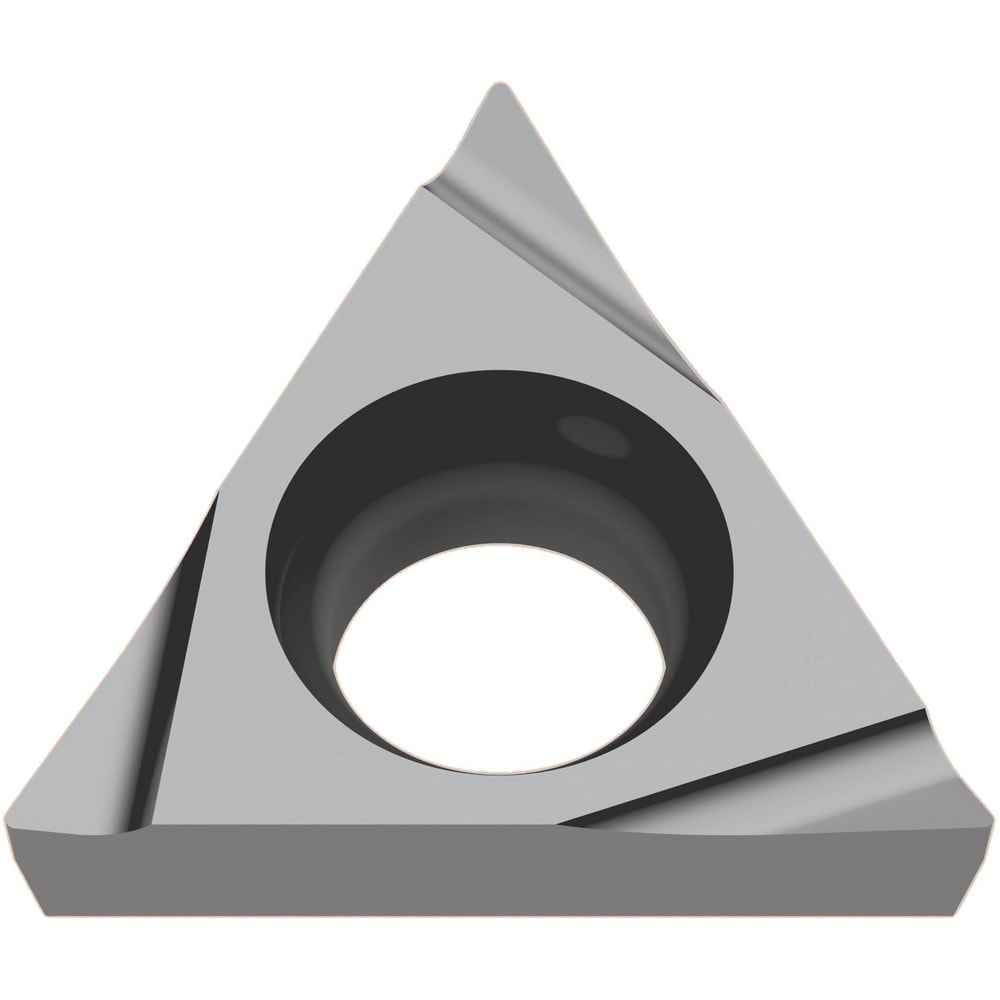

Turning Insert: TCGT1.210.2MLF MS6015, Carbide
Item #: 94396819
Brand: Mitsubishi
Model #: 10592960
Product Specifications
| ANSI Insert Code | TCGT1.210.2 |
| ISO Insert Code | TCGT060101 |
| Relief Angle | 7 |
| Insert Style | TCGT |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 60 |
| Manufacturer Grade | MS6015 |
| Coating/Finish | PVD |
| Insert Hand | Left Hand |
| Insert Thickness (Inch) | 1/16 |
| Insert Thickness | 1.59 |
| Insert Thickness (Decimal Inch) | 0.0625 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | P |
| Chip Breaker | F |
| ANSI Size Code | 1.210.2 |
| ISO Size Code | 060101 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.2 |
| Country of Origin | Japan |
