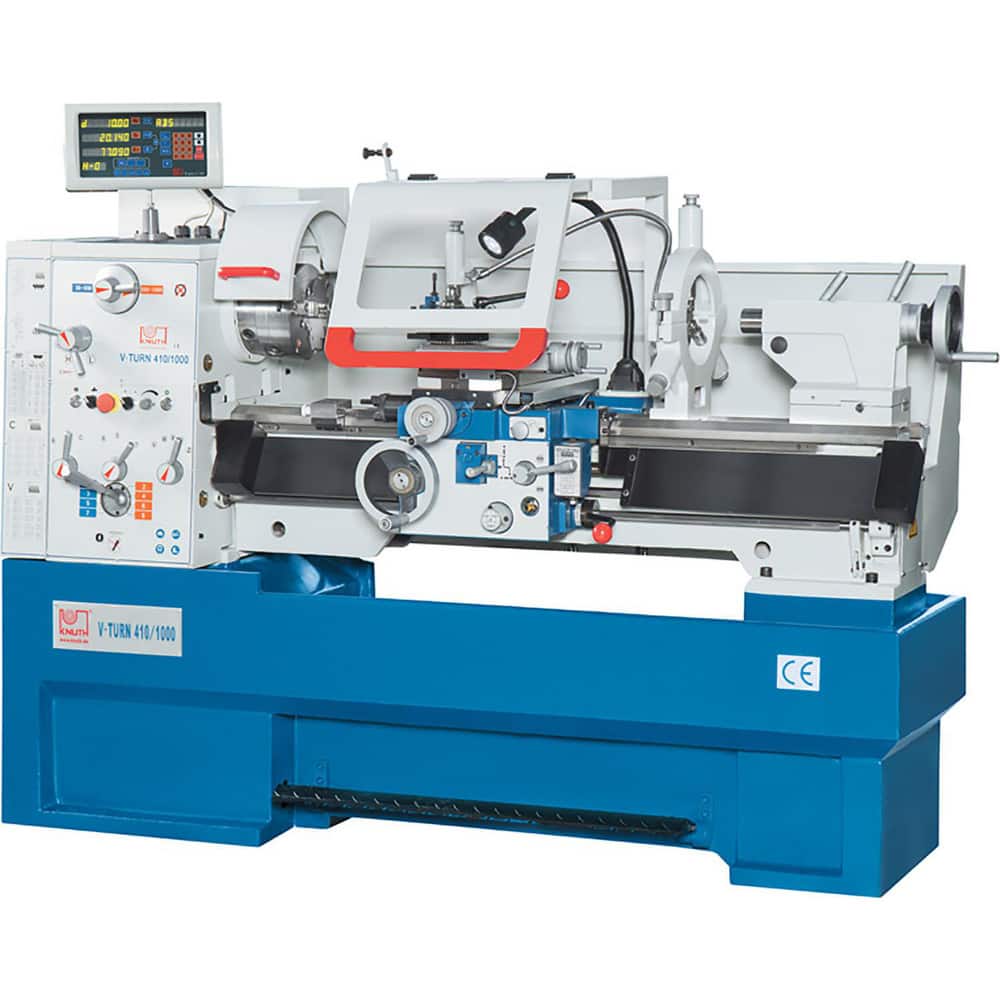

Engine Lathe: 3 Phase, 230.00V, 7.4 hp, 10mm, Frequency 39.37mm Between Centers, 10mm Gap, 8.3mm Cross Slide, 15mm Swing, 2mm Spindle Bore
Item #: 18313692
Brand: Knuth
Model #: 300820
Product Specifications
| Horse Power | 7.4 |
| Phase | 3 |
| Spindle Speed Control | Frequency |
| Bed Width | 10 in |
| Distance Between Centers | 39.37 in |
| Cross Slide Travel | 8.3 in |
| Gap Length | 10 in |
| Swing | 15 in |
| Spindle Bore Diameter | 2 in |
| Minimum Spindle Speed | 30 RPM |
| Spindle Nose Designation | D1-6 |
| Voltage | 230.00 |
| Maximum Spindle Speed | 3000 RPM |
| Overall Height | 52 in |
| Overall Depth | 40 in |
| Overall Length | 77.00 |
| Number of Inch Threads | 42 |
| Minimum Metric Pitch | 0.02 |
| Maximum Metric Pitch | 14 |
| Number of Metric Threads | 39 |
| Spindle Taper Size | Morse Taper 6 |
| Tailstock Taper Size | Morse Taper 4 |
| Minimum Threads Per Inch | 72 |
| Top Slide Travel | 6 |
| Maximum Threads Per Inch | 2 |
| Minimum Longitudinal Feed Per Revolution | 0.00197 in |
| Maximum Longitudinal Feed Per Revolution | 0.06693 in |
| Minimum Cross Feed Rate Per Revolution | 0.00098 in |
| Maximum Cross Feed Rate Per Revolution | 0.03346 in |
| Swing Over Cross Slide | 10 in |
