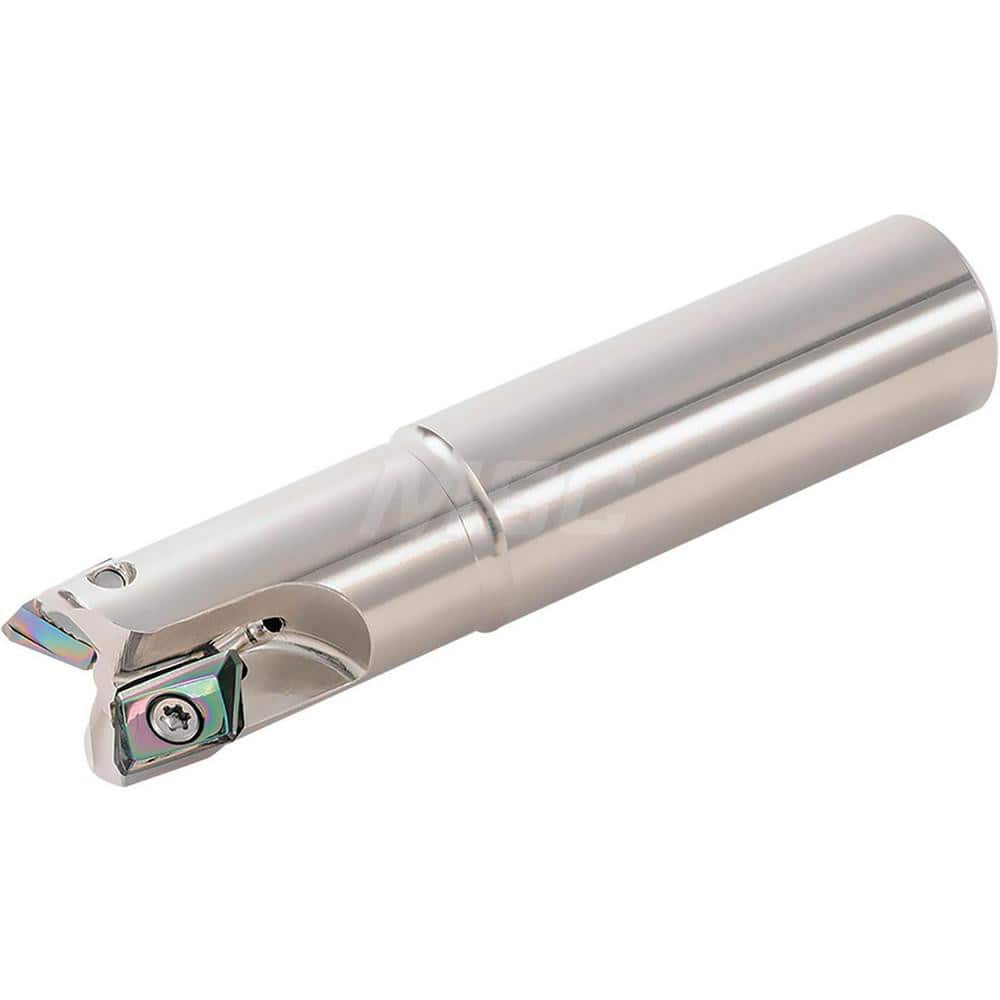

Indexable Square-Shoulder End Mill: MEAS28S25132T, 1.1024'' Cut Dia, Cylindrical Shank Uses 2, Through Coolant, 125.00 mm OAL
Item #: 18291930
Brand: Kyocera
Model #: THN08429
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 1.1024 |
| Maximum Cutting Diameter (mm) | 28.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 125.00 |
| Tool Material | Steel |
| Series | MEAS |
| Lead Angle | 90 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 54000 |
| Complete Insert Compatibility | KCGT?FR-AL |
| MSC/Manufacturer Number | MEAS28S25132T |
| Hand of Holder | Right |
| Multi-Use Tool | Yes |
| ISO Number | MEAS28-S25-13-2T |
| Manufacturers Catalog Number | MEAS28S25132T |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
