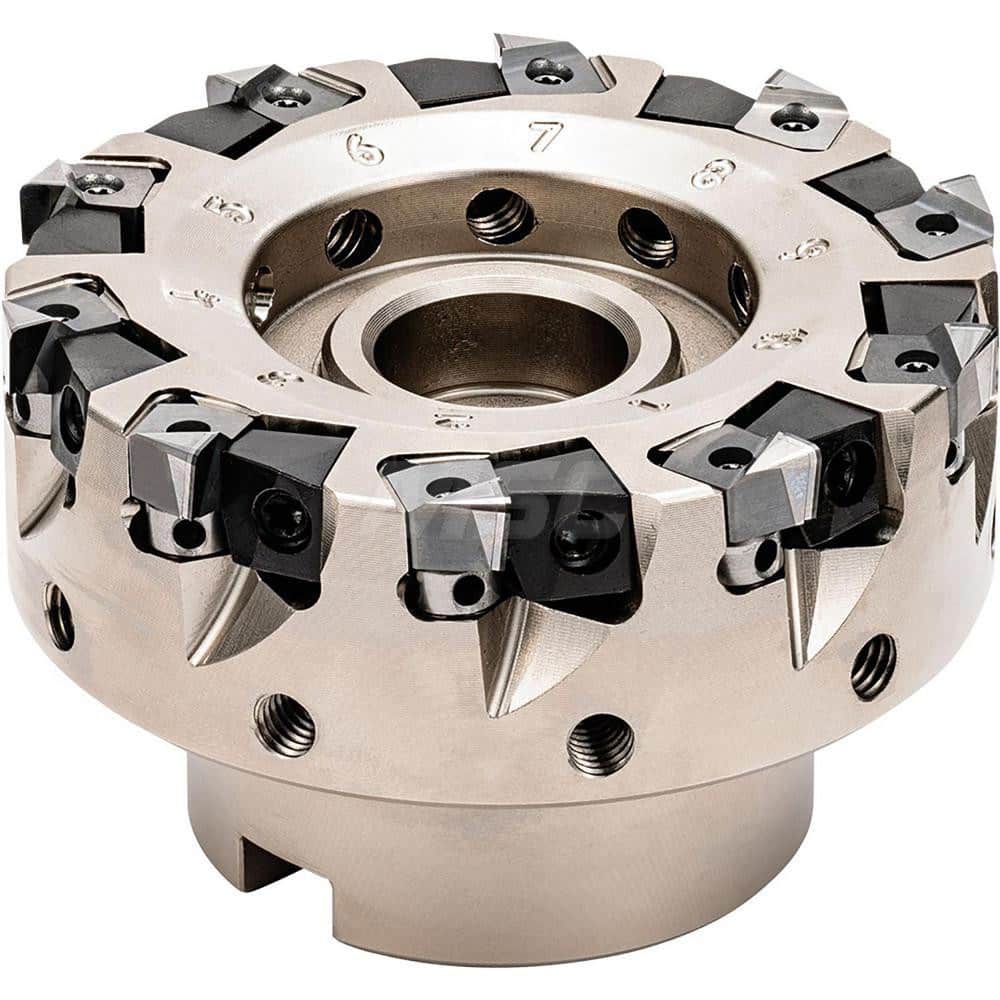

Kyocera MFAH 063RS6TMSF Metric Bore Diameter, Standard Pitch, 6 Flute, 90 Degree Face Mill with a 63.00mm Cutting Diameter for Aluminum Facing, Finishing Applications
Item #: 18291146
Brand: Kyocera
Model #: THN08272
Product Specifications
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 4.60 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | ENET0905? |
| Cutter Style | Aluminum Facing or Finishing |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Series | MFAH |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Hub Diameter (mm) | 2.40 |
| Hub Diameter (Decimal Inch) | 2.4000 |
| Maximum RPM | 16800 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFAH063RS6TMSF |
| Coolant Through | No |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
