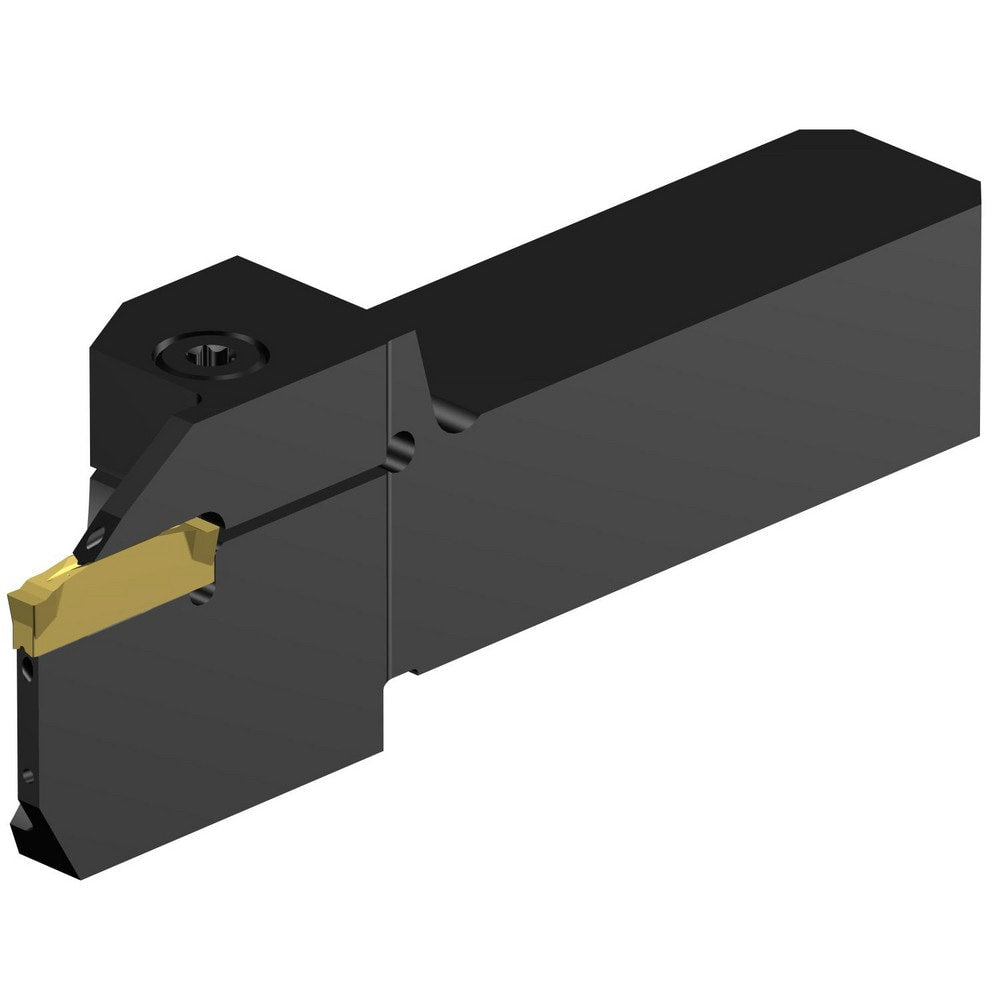

Indexable Grooving/Cut-Off Toolholders; Hand of Holder: Right Hand; Maximum Depth of Cut (Decimal Inch): 0.7874; Maximum Depth of Cut (mm): 20.00; Maximum Groove Width (Decimal Inch): 0.1421; Maximum Groove Width (mm): 3.61; Minimum Groove Width (Decimal
Item #: 06274799
Brand: Sandvik Coromant
Model #: 8196245
Product Specifications
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (Decimal Inch) | 0.1421 |
| Maximum Groove Width (mm) | 3.61 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | C2R-QS..R/L..CD |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | G2 |
| Insert Compatibility | C2I-G2-0300- |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | CoroCut 2 |
| Cutting Tool Application | Grooving; Cut-Off; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2043 |
| Head Height (Decimal Inch) | 0.7874 |
| Head Height (mm) | 20.000 |
| Manufacturers Catalog Number | C2R-QS20-RG20CD |
| Complete Insert Compatibility | CoroCut 2 -size G (C2I-G2-0300-) |
| Insert Seat Size | 3.0 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | Yes |
| UNSPSC Code | 27112809 |
