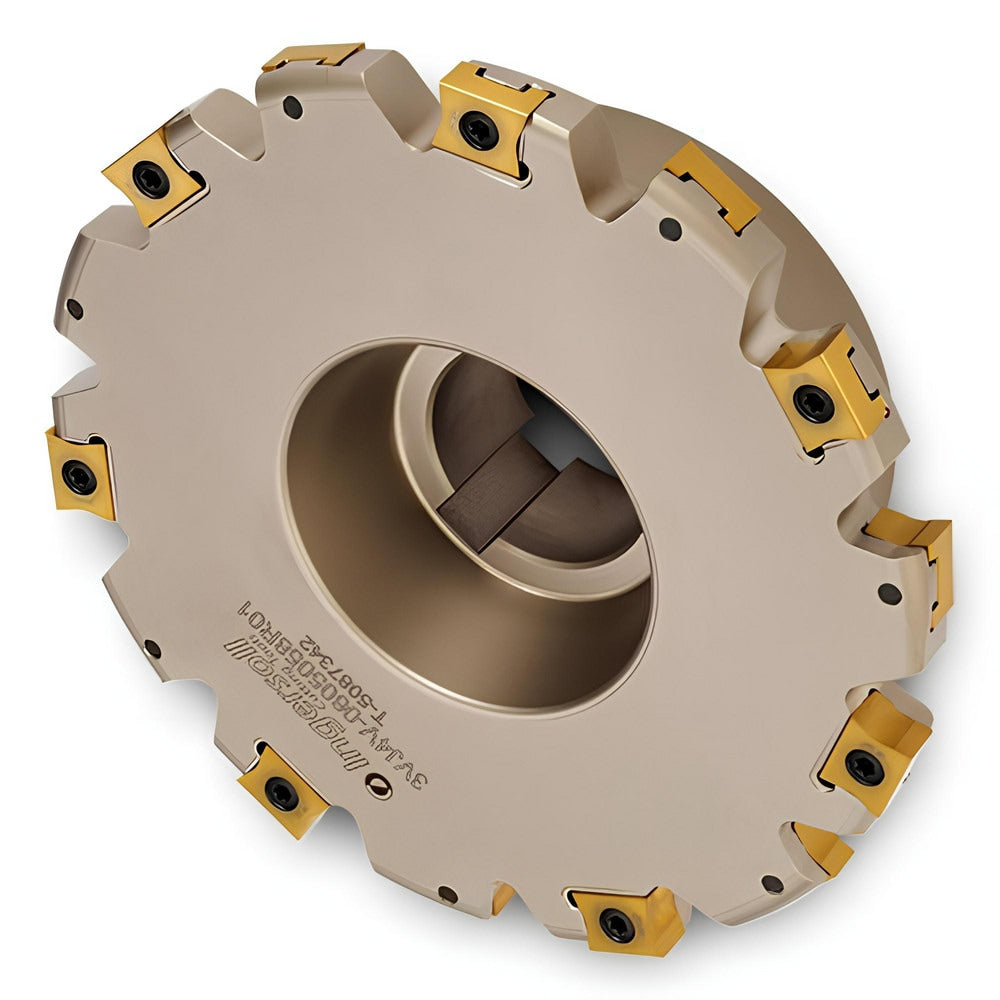

Indexable Slotting Cutter: 1/2" Cutting Width, 5" Cutter Dia, Arbor Connection, 1.0400" Depth of Cut, 1.0000" Shank Length, Right Hand
Item #: 90112434
Brand: Ingersoll Cutting Tools
Model #: 2914015
Product Specifications
| Connection Type | Arbor |
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.0400 |
| Hole Diameter (Inch) | 1 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Shank Length (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | IHX |
| Compatible Insert Size Code | 415 |
| Tooth Type | Staggered |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3VJ4V |
| Toolholder Style | 3VJ4V |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Hub Diameter (Inch) | 2-3/4 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 127.00 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3VJ4V-05050D3R01 |
| Overall Height (Decimal Inch) | 1.5000 |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Complete Insert Compatibility | INX415.. |
| Coated | Coated |
