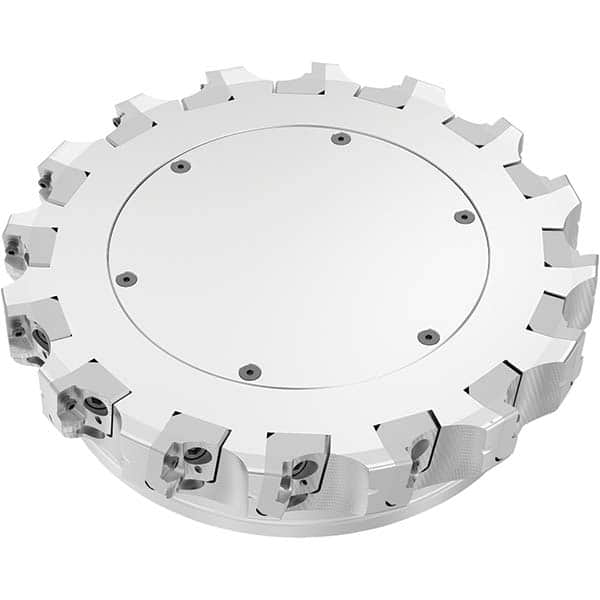

Indexable Square-Shoulder Face Mill: R220.69-8250-XO16-16CA, 60.0000″ Arbor Hole Dia, Uses 16, XOMX & XOEX Inserts, Through Coolant, Series R220.69
Item #: 18139352
Brand: Seco
Model #: 03336129
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 9.8430 |
| Maximum Cutting Diameter (mm) | 250.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Inch) | 60 |
| Arbor Hole Diameter (Decimal Inch) | 60.0000 |
| Compatible Insert Size Code | XOEX; XOMX |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | R220.69 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Hub Diameter (mm) | 130.00 |
| Maximum RPM | 5200 |
| Number of Adjustable Pockets | 16 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 16 |
| Number Of Flutes | 16 |
