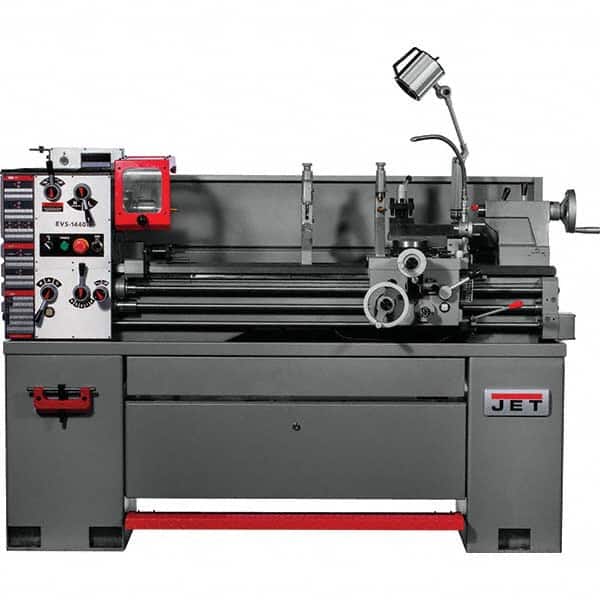

Toolroom Lathe: 14″ Swing, 40″, Electronic Variable Speed 1-1/2″ Spindle Bore Dia, D1-4, 40 to 2,000 RPM, 3 Phase, 230/460V, 3 hp
Item #: 17987678
Brand: Jet
Model #: 311450
Product Specifications
| Horsepower | 3.00 |
| Phase | 3 |
| Spindle Speed Control | Electronic Variable Speed |
| Bed Width (Inch) | 7.4800 |
| Bed Width | 7.48 in |
| Distance Between Centers (Inch) | 40 |
| Distance Between Centers | 40 in |
| Gap Length (Decimal Inch) | 9.5000 |
| Gap Length | 9.5 in |
| Swing | 14 in |
| Swing (Inch) | 14 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Minimum Spindle Speed | 40 |
| Spindle Nose Designation | D1-4 |
| Voltage | 230/460 |
| Maximum Spindle Speed | 2000 |
| Overall Height | 50.0000 in |
| Overall Depth | 28.3 in |
| Minimum Metric Pitch (Decimal Inch) | 0.5000 |
| Maximum Metric Pitch (Decimal Inch) | 12.0000 |
| Number of Inch Threads | 34 |
| Minimum Metric Pitch | 0.5 in |
| Maximum Metric Pitch | 12.0 in |
| Number of Metric Threads | 34 |
| Spindle Taper Size (Sleeve) | 5MT |
| Spindle Taper Size | 3MT |
| Tailstock Taper Size | 3MT |
| Tailstock Travel (Decimal Inch) | 6.1250 |
| Top Slide Travel (Decimal Inch) | 3.5000 |
| Tailstock Travel | 6.125 in |
| Maximum Threads Per Inch | 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0016 |
| Overall Height (Decimal Inch) | 50.0000 |
| Overall Depth (Inch) | 28.3000 |
| Includes | EVS-1440 Electronic Variable Speed Lathe with Newall DP700 DRO & Taper Attachment |
| Overall Length (Decimal Inch) | 68.5000 |
| Overall Length (Inch) | 68-1/2 |
| Minimum Longitudinal Feed Per Revolution | 0.0016 in |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0460 |
| Maximum Longitudinal Feed Per Revolution | 0.046 in |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 25.0000 |
| Maximum Cross Feed Rate Per Revolution | 25.0 in |
| Swing Over Cross Slide (Decimal Inch) | 7.0000 |
| Swing Over Cross Slide (Inch) | 7 |
| Swing Over Cross Slide | 7 in |
| Swing Over Gap (Inch) | 19-1/2 |
| Certification | UL Listed; CSA Certified |
| Machine Type | Bench Lathe |
| Warranty | 2 Year |
 | |
| MSC Part # | 17987678 |
| Mfr Part # | 311450 |
