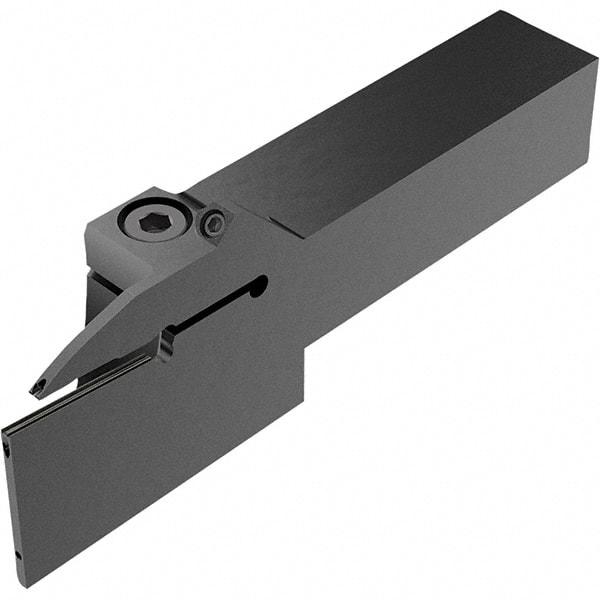

Seco - CFZ, External, Right Hand, 26mm Max Depth of Cut, 2mm Max Groove Width, Indexable Grooving Tool Holder - LC.. 2802.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 116mm OAL, Through Coolant
Item #: 17907387
Brand: Seco
Model #: 03244715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (mm) | 116.00 |
| Toolholder Style | CFZ |
| Insert Compatibility | LC.. 2802.. |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | JETI |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Workpiece Diameter (mm) | 52.00 |
| Head Length (mm) | 52.00 |
| Toolholder Material | Steel |
