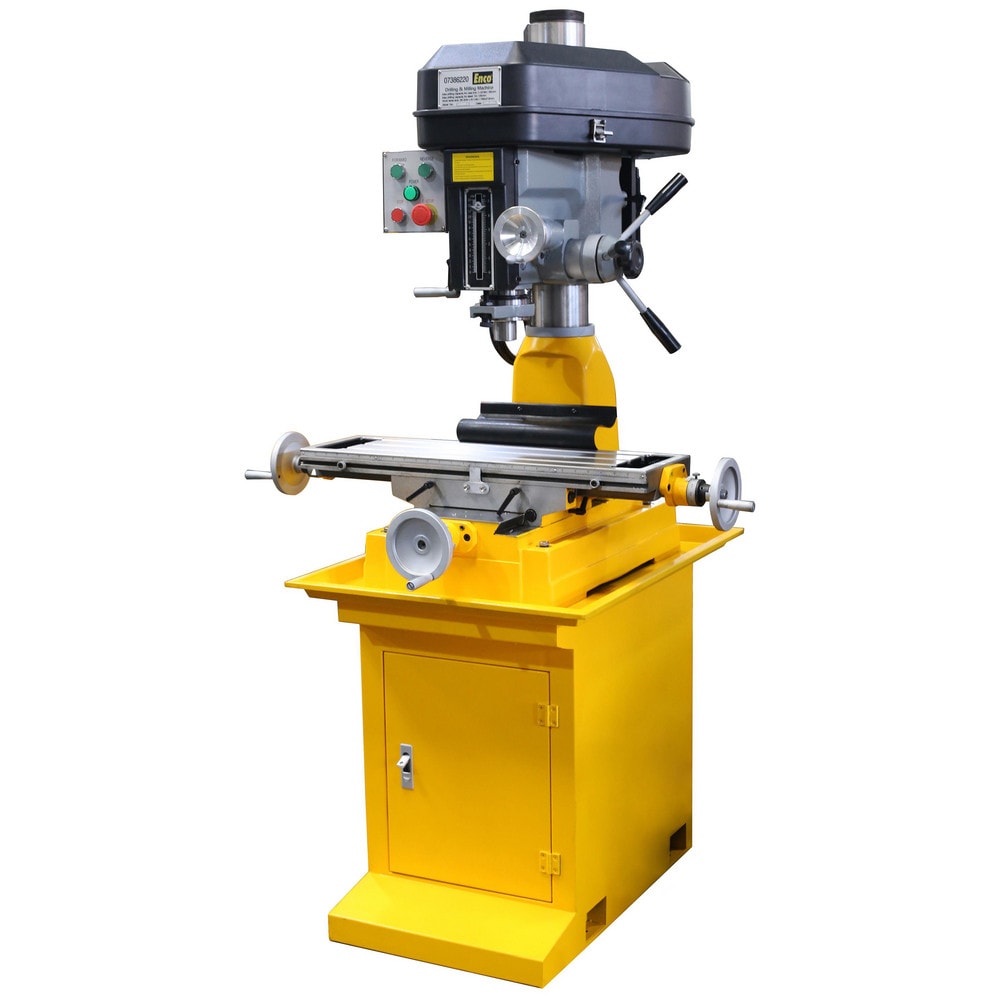

Mill Drill Machines; Drilling Capacity in Steel (Inch): 1; End Milling Capacity (Decimal Inch): 0.75; Face Milling Capacity (Decimal Inch): 3; Cross Travel (Inch): 7-1/2; Longitudinal Travel (Inch): 19-11/16
Item #: 07386220
Brand: Enco
Model #: ZX30
Product Specifications
| Drilling Capacity in Steel (Inch) | 1 |
| End Milling Capacity (Decimal Inch) | 0.75 |
| Face Milling Capacity (Decimal Inch) | 3 |
| Cross Travel (Inch) | 7-1/2 |
| Longitudinal Travel (Inch) | 19-11/16 |
| Column Type | Round |
| Speed Setting | Single Speed |
| Head Swivel (Degrees) | 360.00 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.3125 |
| Minimum Spindle Speed | 120 |
| Maximum Spindle Speed | 2080 |
| Number Of Spindle Speeds | 12 |
| Number of Spindle Speeds | 12 |
| Number of T-Slots | 3.000 |
| Horsepower | 2 |
| Table Length (Inch) | 28-3/4 |
| Phase | Single |
| Quill Diameter (Inch) | 2.95 |
| Spindle Diameter (Decimal Inch) | 3.0000 |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 4-11/16 |
| T-Slot Size (Inch) | 1/2 |
| Voltage | 110V |
| Overall Height (Inch) | 46 |
| Overall Length (Inch) | 38 |
| Machine Type | Mill Drill Combination |
| Drilling Capacity in Cast Iron (Inch) | 1-3/16 |
| Maximum Spindle To Column Distance (Inch) | 7-3/4 |
| UNSPSC Code | 23241500 |
