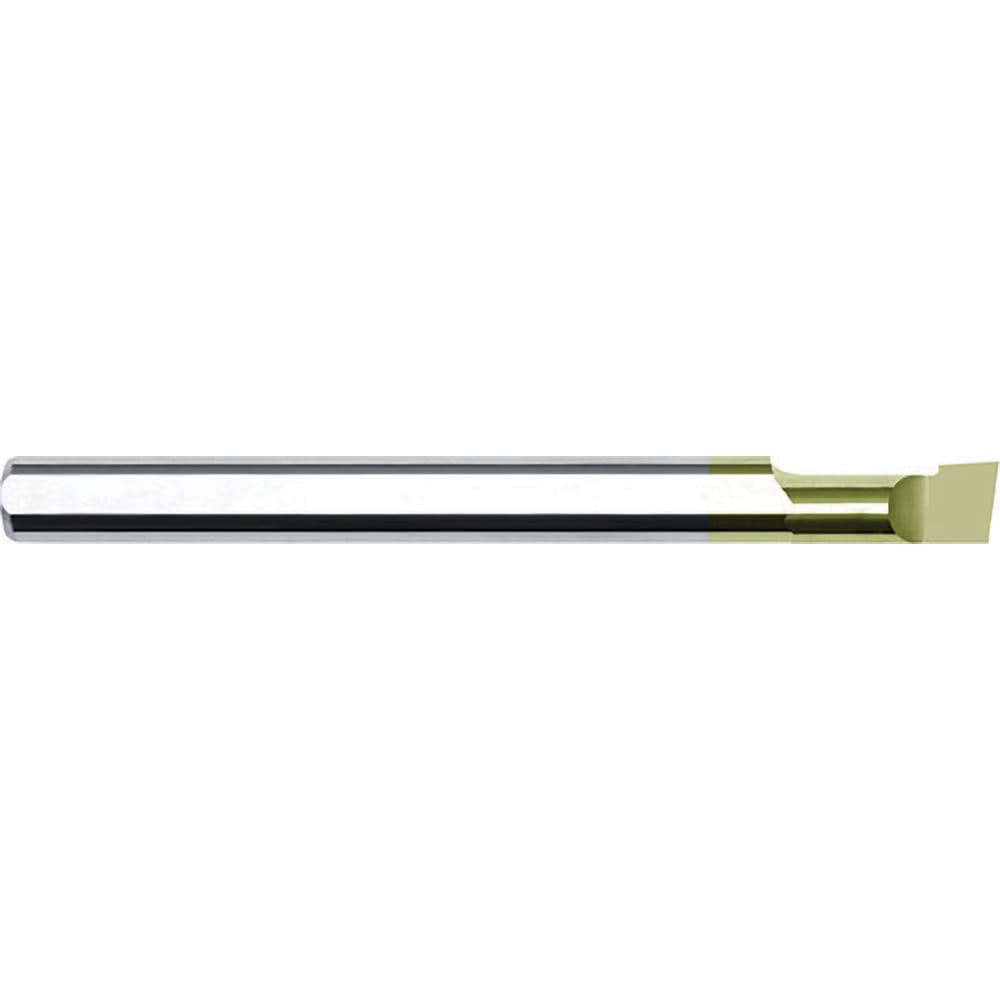

Boring Bar: 0.1800" Min Bore Dia, 3/4" Max Bore Depth, Right Hand, 3/16" Shank Dia, Micrograin Solid Carbide
Item #: 94299831
Brand: Internal Tool
Model #: 19-1350
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1800 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Projection (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2-1/2 |
| Bar End Angle | 7 |
| Series | 19 |
| Maximum Bore Depth (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Aluminum |
| Corner Radius (Decimal Inch) | 0.0070 |
| Relief Angle | 4 |
| UNSPSC Code | 23241601 |
| Country of Origin | UNITED STATES |
