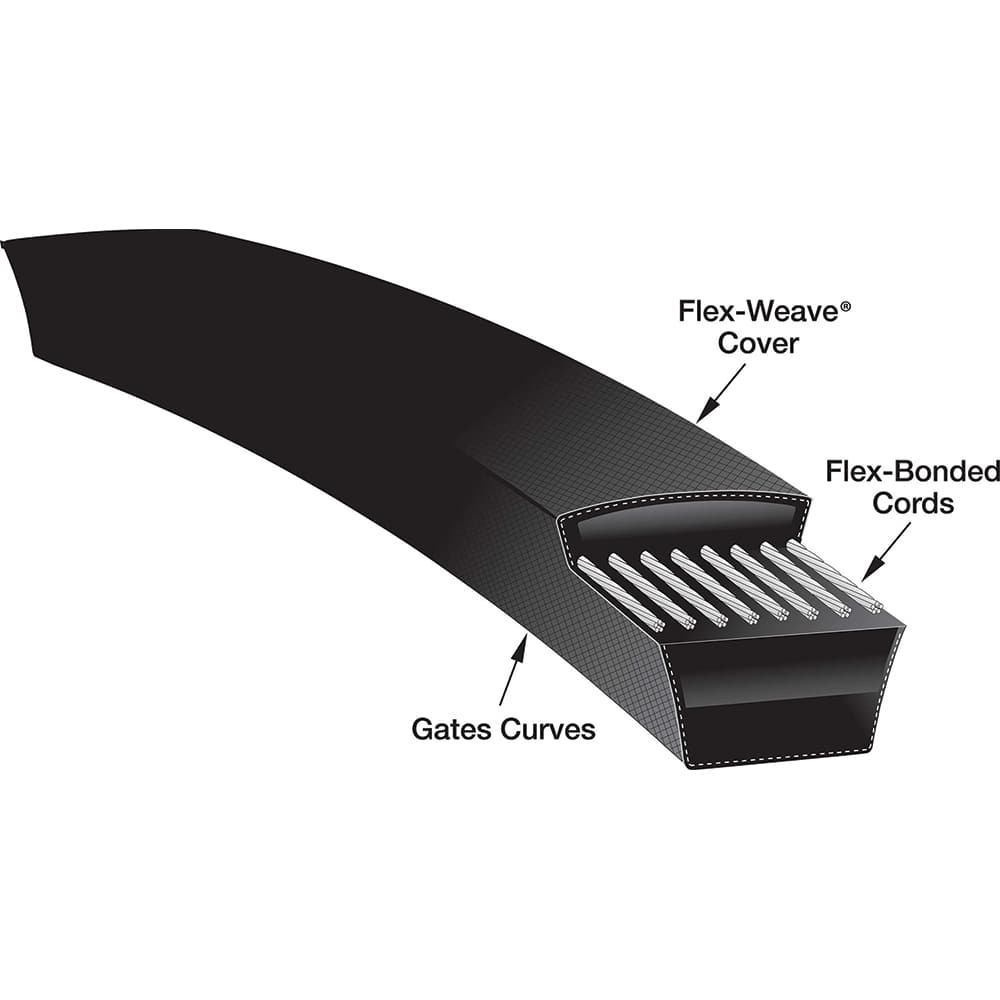

V-Belt: Section B, 80.1″ Outside Length, 21/32″ Belt Width Gates Rubber Compound, Banded, B77
Item #: 17483884
Brand: Gates
Model #: 90032077
Product Specifications
| Belt Style | V-Belts |
| Belt Type | Banded |
| Belt Section | B |
| Belt Width (Inch) | 0.6800 |
| Belt Width (Inch) | 21/32 |
| Outside Length (mm) | 2034.54 |
| Belt Width | 17.35 |
| Material | Gates Rubber Compound |
| Resistance Features | Ozone Resistant; Weather Resistant; Sunlight Resistant |
| Color | Black |
| Standards | REACH; 34; RoHS 2; 2014; ISO 1813; RMA; EU- ATEX Directive |
| Minimum Working Temperature | -30 ?C; -22 ?F |
| Outside Length (Decimal Inch) | 80.1000 |
| Belt Number | B77 |
| Belt Internal Length | 77.45 |
| Belt Internal Length | 1967.23 |
| Style | Banded V-Belt |
| Minimum Temperature (C) | -30 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4220 |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Thickness (mm) | 11.00 |
| Minimum Temperature (F) | -22 |
