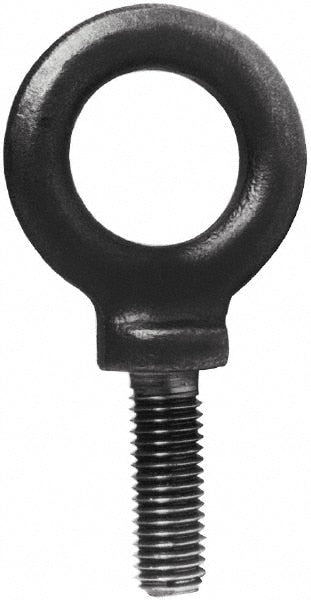

Fixed Lifting Eye Bolt: With Shoulder, 1,800 lb Capacity, 7/16-14 Thread, Grade 1030 Steel
Item #: 08099046
Brand: Made in USA
Model #: 14638
Product Specifications
| Eye Bolt Type | Fixed |
| Shoulder Type | With Shoulder |
| Lifting Capacity (Lb.) | 1800.00 |
| Eye Inside Diameter (Inch) | 1-3/32 |
| Eye Outside Diameter (Decimal Inch) | 1.8400 |
| Thread Size | 7/16-14 |
| Thread Length (Inch) | 1-3/8 |
| Full or Partial Threading | Fully Threaded |
| Overall Length (Decimal Inch) | 3.6560 |
| Shank Length (Inch) | 1-3/8 |
| Shank Diameter (Inch) | 7/16 |
| Material | Steel |
| Material Grade | 1030 |
| Shoulder/Base Diameter (Inch) | 25/32 |
| System Of Measurement | Inch |
| UNSPSC Code | 31161610 |
| Eye Bolt Type | Fixed |
| Shoulder Type | With Shoulder |
| Lifting Capacity (Lb.) | 1800.00 |
| Eye Inside Diameter (Inch) | 1-3/32 |
| Eye Outside Diameter (Decimal Inch) | 1.8400 |
| Thread Size | 7/16-14 |
| Thread Length (Inch) | 1-3/8 |
| Full or Partial Threading | Fully Threaded |
| Overall Length (Decimal Inch) | 3.6560 |
| Shank Length (Inch) | 1-3/8 |
| Shank Diameter (Inch) | 7/16 |
| Material | Steel |
| Material Grade | 1030 |
| Shoulder/Base Diameter (Inch) | 25/32 |
| System Of Measurement | Inch |
| UNSPSC Code | 31161610 |
| MSC Part # | 08099046 |
| Mfr Part # | 14638 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
