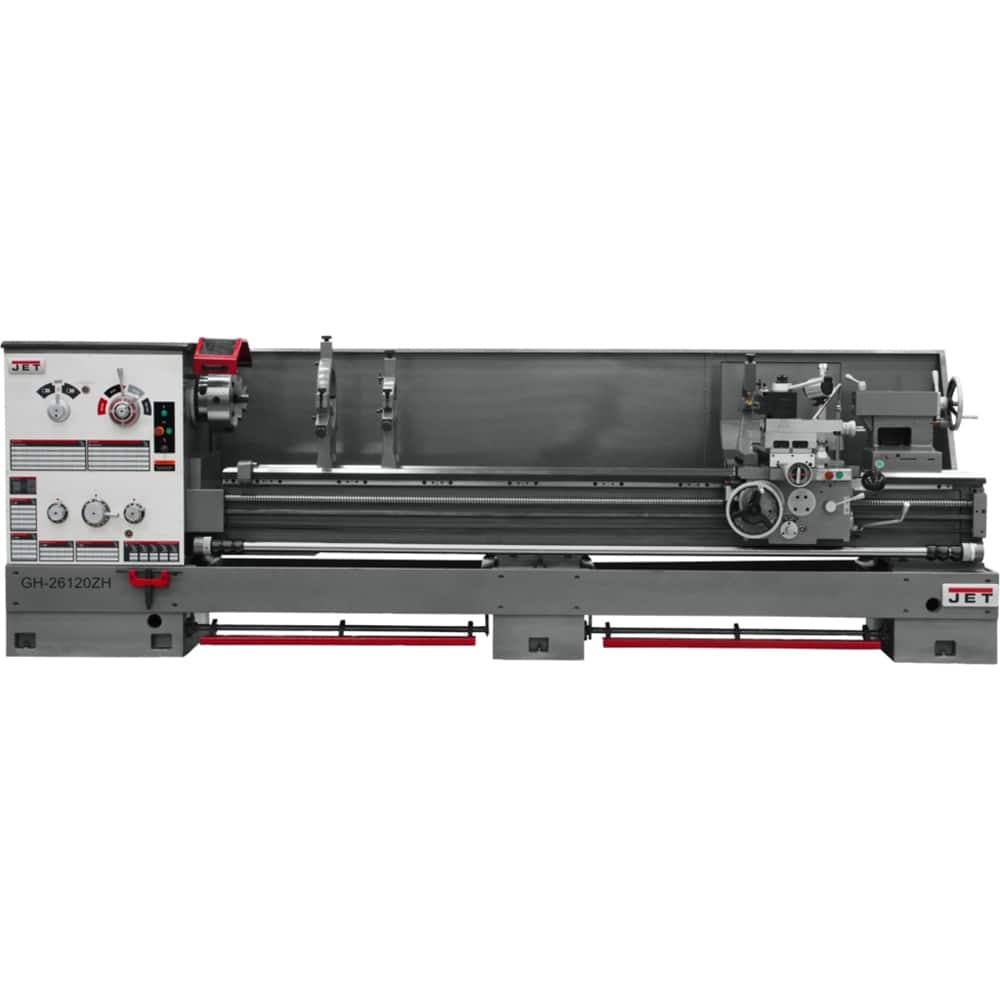

Jet - 3 Phase 230/460V 10 hp 26" Swing Geared Head Large Spindle Bore
Item #: 17161951
Brand: Jet
Model #: 321890
Product Specifications
| Machine Type | Engine; Large Spindle Bore |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Voltage | 230/460 |
| Horsepower (HP) | 10 |
| Swing (Inch) | 26 |
| Distance Between Centers (Inch) | 34 |
| Spindle Bore Diameter (Inch) | 4-1/8 |
| Spindle Taper Size | 5MT |
| Gap Length (Decimal Inch) | 8.0000 |
| Bed Width (Inch) | 16 |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 22 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 65.0000 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0404 |
| Cross Slide Travel (Inch) | 16-1/2 |
| Overall Depth (mm) | 43.00 |
| Compound Travel | 5-1/2 |
