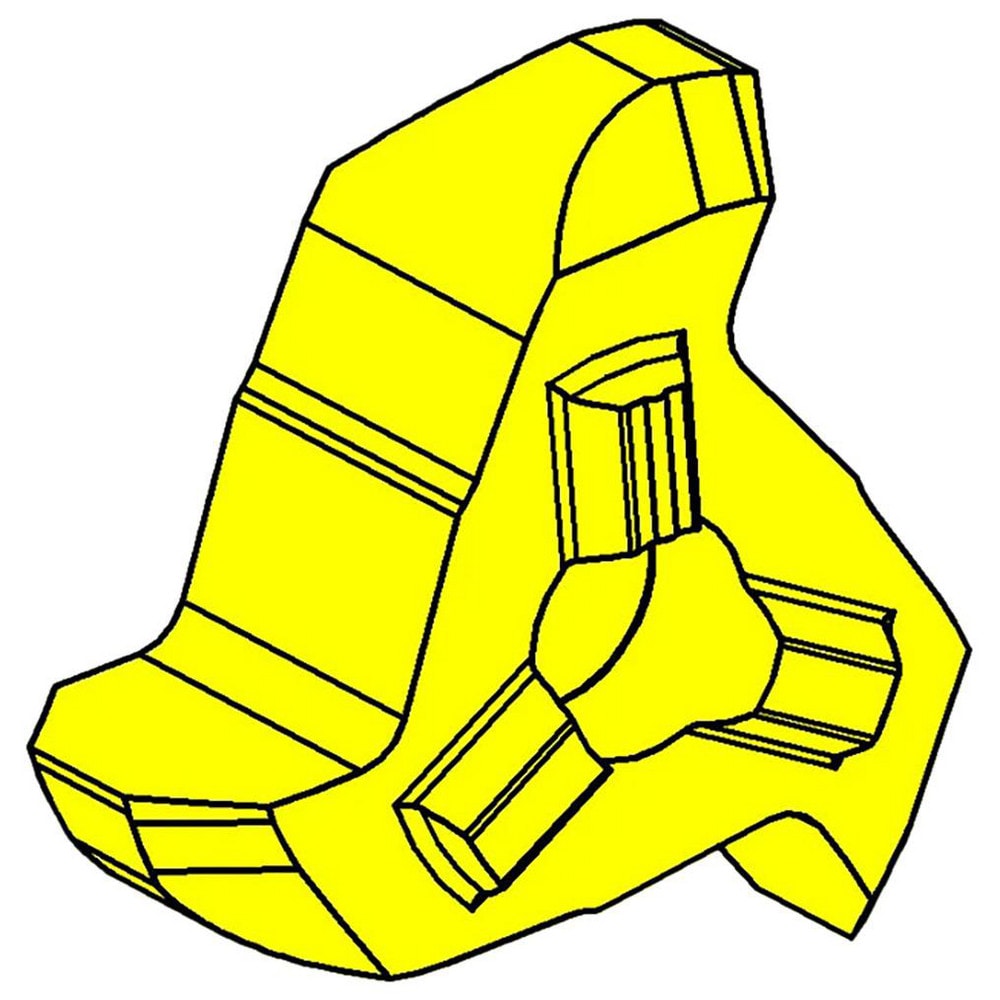

Milling Insert: TN35, Solid Carbide
Item #: 08507865
Brand: HORN
Model #: 313454500TN35
Product Specifications
| Insert Style | 313 |
| Insert Size | 45 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TN35 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2800 |
| Thickness (mm) | 7.11 |
| Coating/Finish | TiN |
| Insert Size Code | 4545 |
| Inscribed Circle (Decimal Inch) | 0.8540 |
| Inscribed Circle (mm) | 21.69 |
| Insert Hand | Right Hand |
| Series | 313 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Manufacturers Catalog Number | 313454500TN35 |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 45 |
| Width (Decimal Inch - 4 Decimals) | 0.8543 |
| Width (mm - 2 Decimals) | 21.70 |
