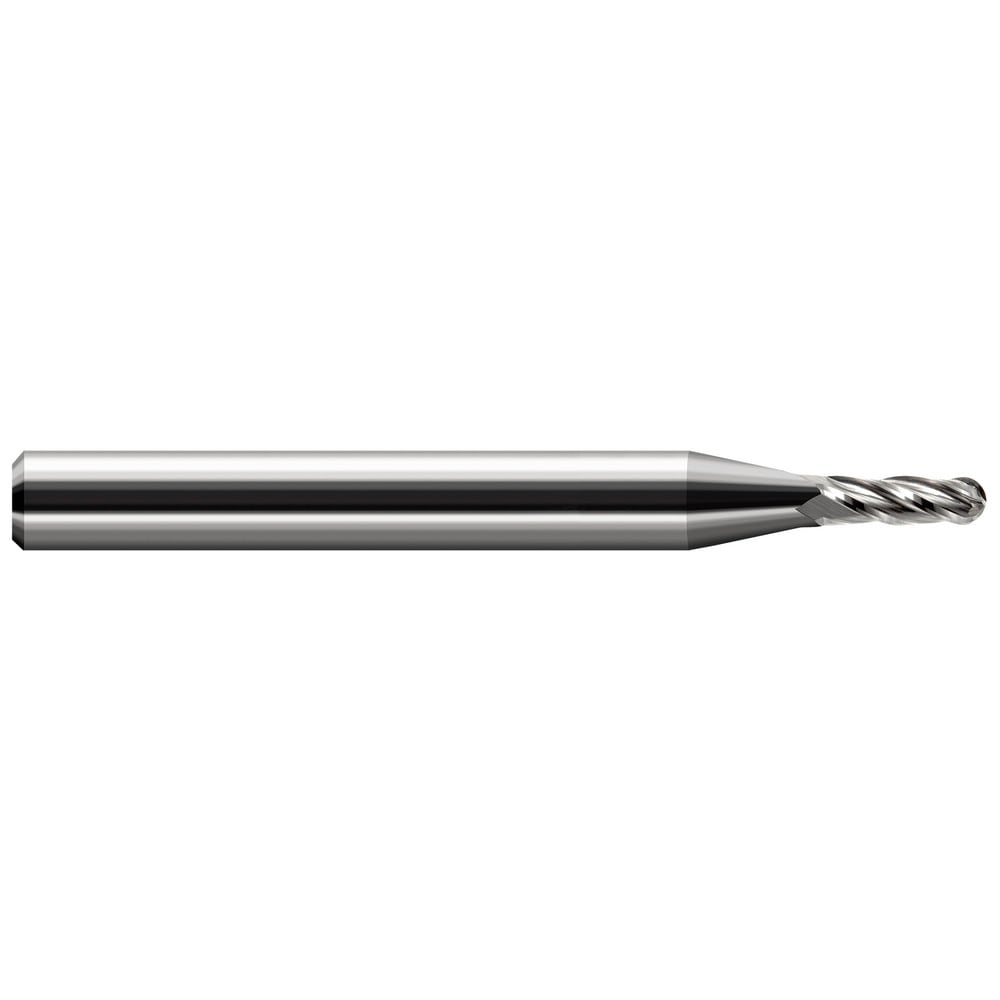

Ball End Mill: 4.00 mm Dia, 12.00 mm LOC, 2 Flute, Solid Carbide
Item #: 87913299
Brand: Harvey Tool
Model #: 739661
Product Specifications
| Mill Diameter (mm) | 4.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 12.00 |
| Coating/Finish | Bright/Uncoated |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 50.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 - 0.7000 |
| Length Type | Standard |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 4.00 |
| Nose Radius (mm) | 2.00 |
| Reach Length (mm) | 12.00 |
| Mill Diameter Tolerance | +0.00/-0.04 mm |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Miniature End Mills - Ball - Stub & Standard - Metric, Miniature End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Manufacturers Catalog Number | 739661 |
| System Of Measurement | Metric |
| Country of Origin | UNITED STATES |
