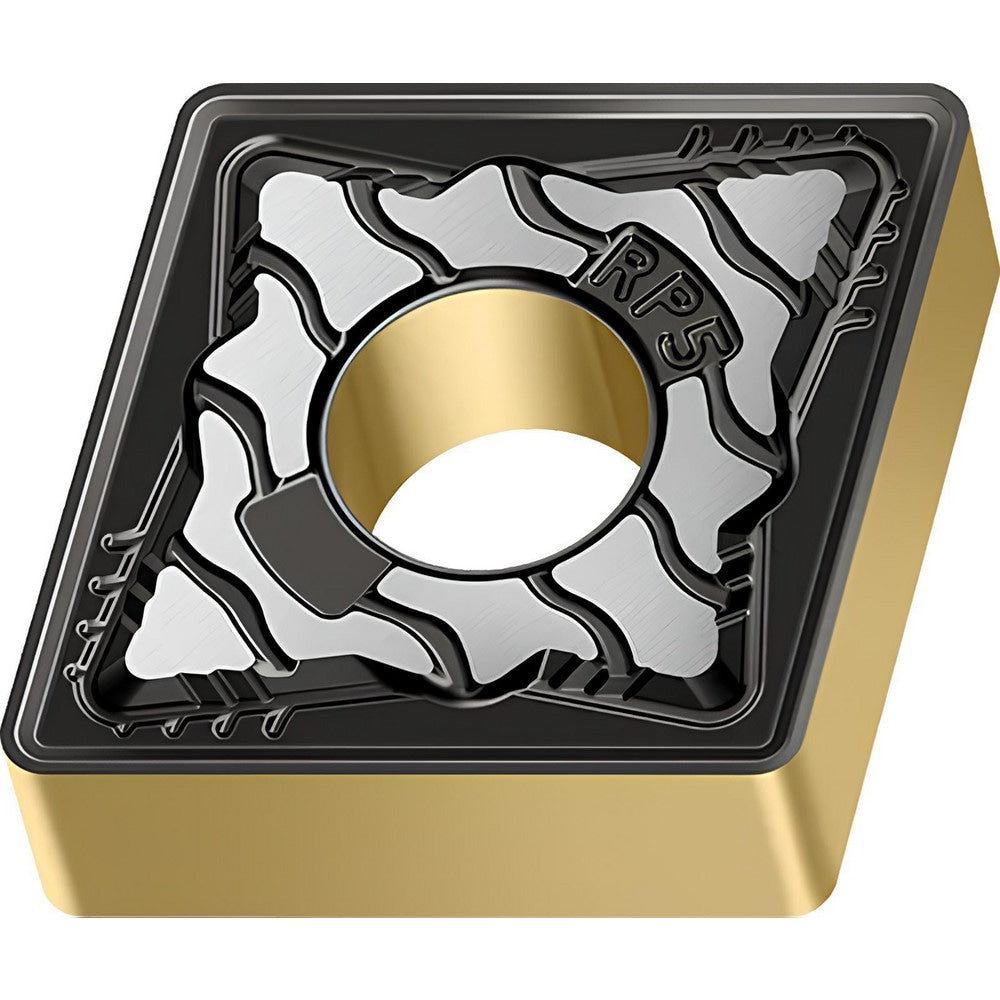

Turning Insert: CNMG543-RP5 WPP20G, Carbide
Item #: 16357907
Brand: Walter
Model #: 8115691
Product Specifications
| ANSI Insert Code | CNMG543 |
| ISO Insert Code | CNMG160612 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 80 |
| Manufacturer Grade | WPP20G |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | CNMG-RP5 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6350 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6346 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CNMG160612-RP5 WPP20G |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 8115691 |
| Material Grade | K30; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 80 |
| Coating Classification | CVD |
| Chip Breaker | RP5 |
| Rake Angle | 17 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNMG543-RP5 WPP20G |
| Width (Decimal Inch - 4 Decimals) | 0.6346 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 543 |
| ISO Size Code | 160612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 543 |
